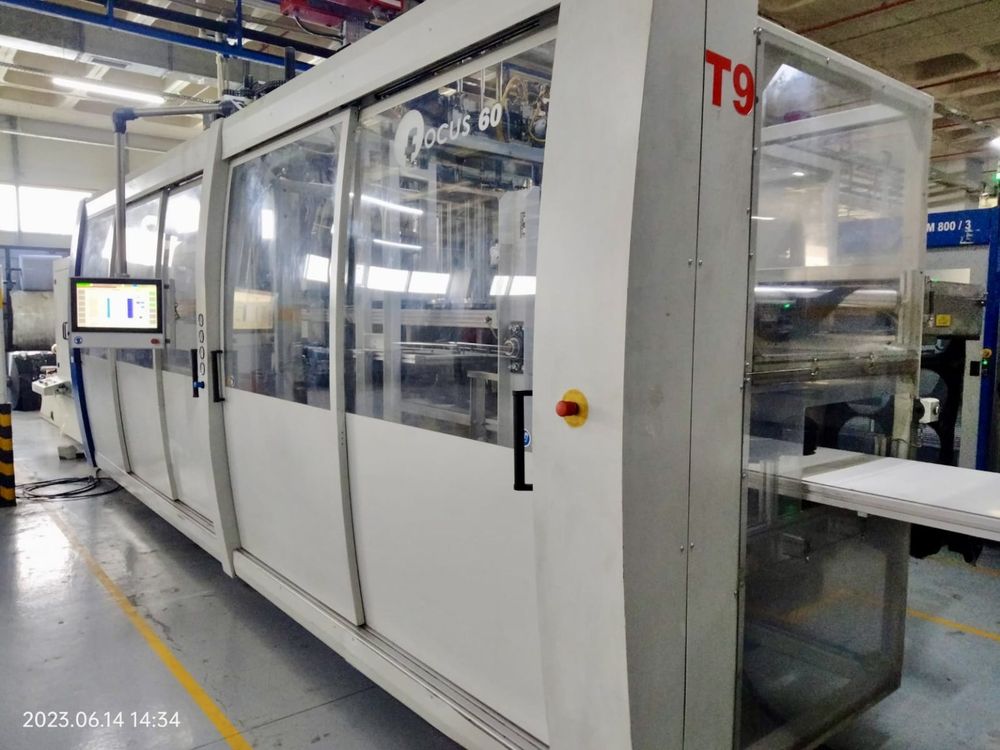

Gabler Focus 60

The thermoforming machine is designed for
producing deep-drawn formed parts using heated plastic film.

The machine features a controlled un-winder to feed the plastic film from a
roll and a toothed conveyor belt for automatic transportation through
the machine.

The film is heated from above and below in the heating station,
then vacuumed and compressed air is used to pull it into a mold for
deep-drawing.

After cooling, the outer contours are trimmed, and the individual blanks are
held in place by retaining collars.

In the stacking station, the product blanks are pressed out of the film and
stacked on a conveyor belt, which transports them out of the machine once
a set amount is reached.

The entire process is automated based on programmed specifications,
except for the manual removal of finished workpieces at the outlet.

The trimming and stacking stations can be adjusted for
different product sizes, and the machine incorporates sensors for
monitoring various aspects of the process.


Maximum film width: 620 mm
Minimum film width: 270 mm
Film thickness: 0.1 to 1.9 mm
Operating pressure 6-10 bar
Operating voltage 3 x 400 V + N + PE, 50 Hz ( 60 Hz)
Power load 158.9 kVA
Acoustic power 75 dB(A)
Total weight ca. 11,000 kg
Film level above ground ca. 1535 mm
Machine speed max. 55 cycles/min
