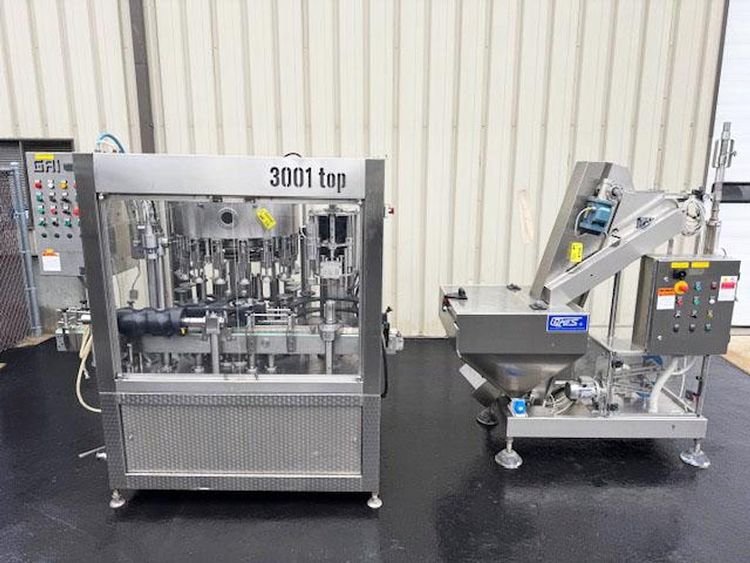

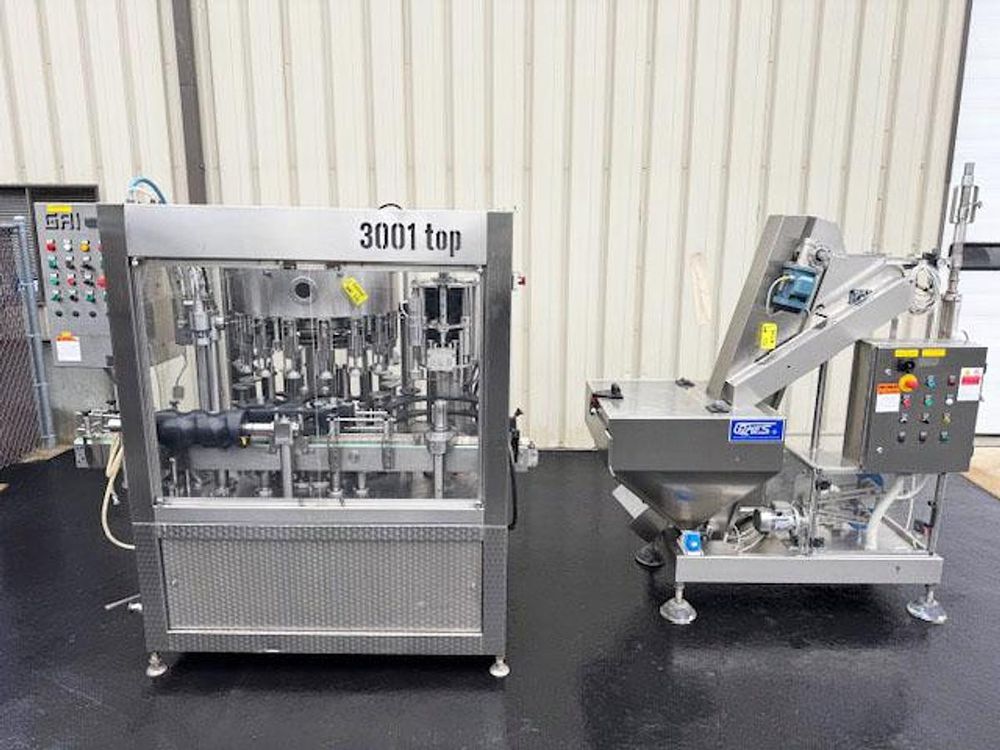

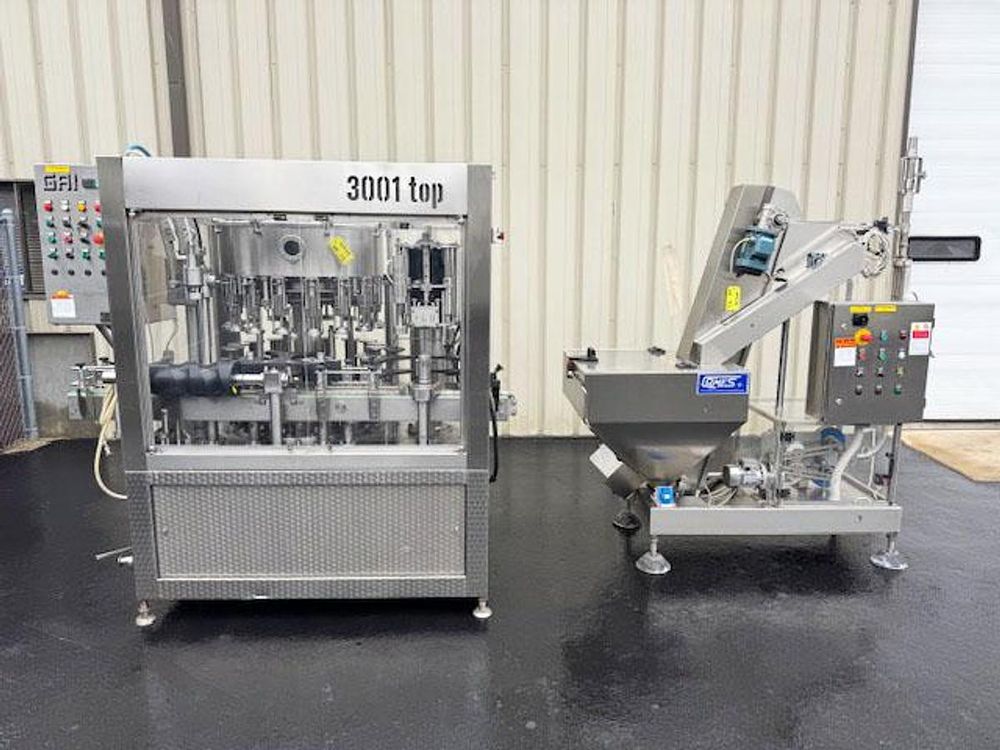

GAI 16 Valve Triblock Bottle Sparger, Filler & Corker

16 Valve Triblock Bottle Sparger, Filler & Corker with Cork Feed System

Details:
- 1/16/1 Bottle Sparger-Filler-Corker

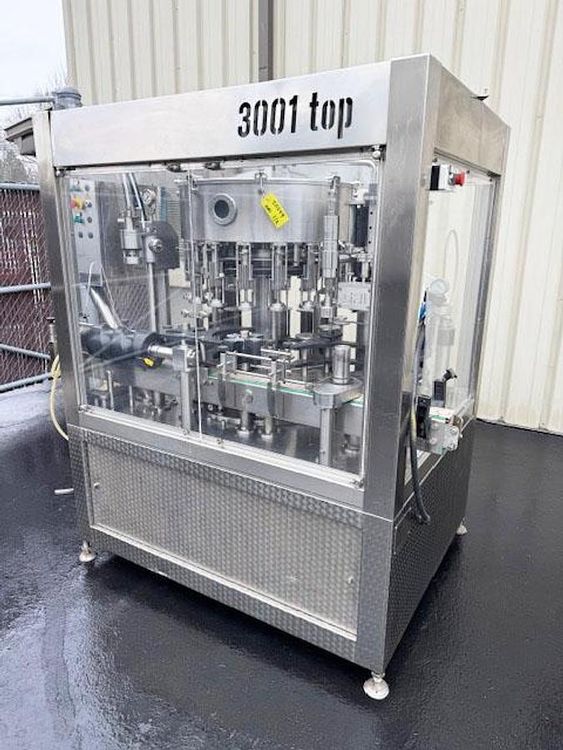

- Model Number 3001 TOP
- Serial Number ACI 3000
- Last filling wine into 750ml glass bottles

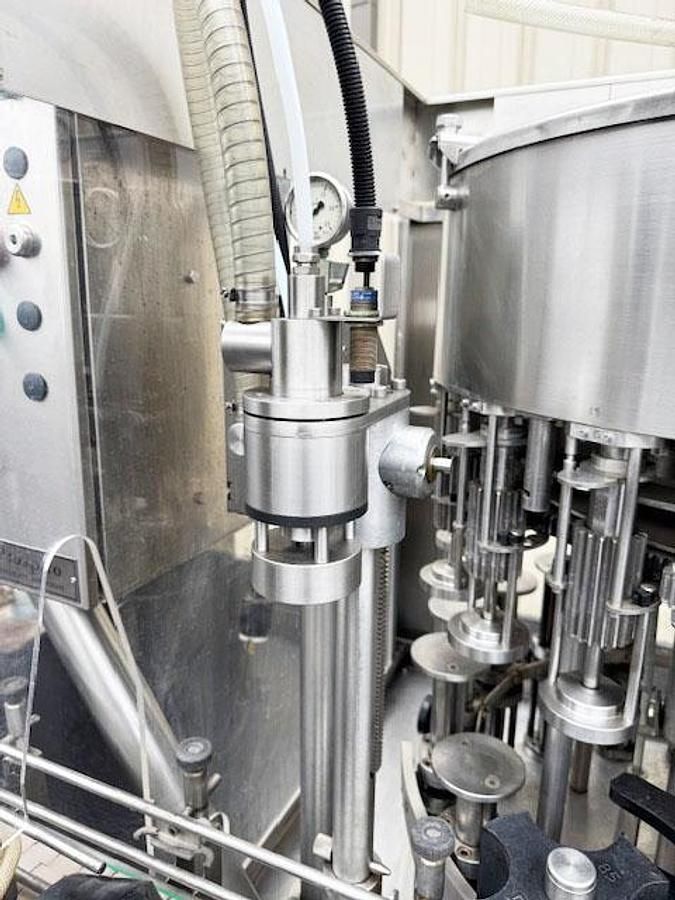

- 1-Head Sparger (vacuum takes approx. 90% of air out of bottle and fills with neutral gas such as CO2 or Nitrogen)

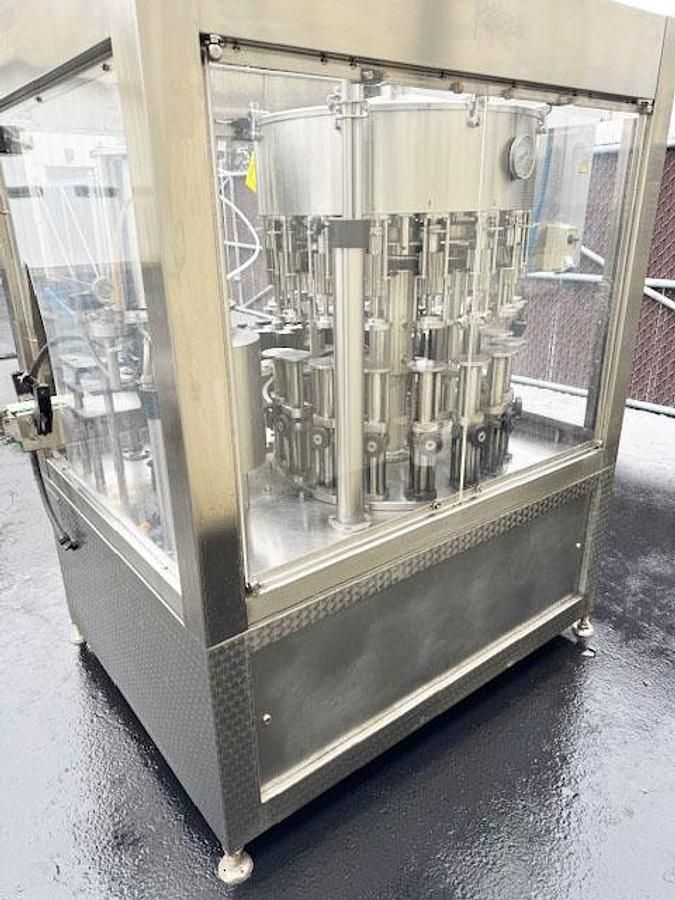

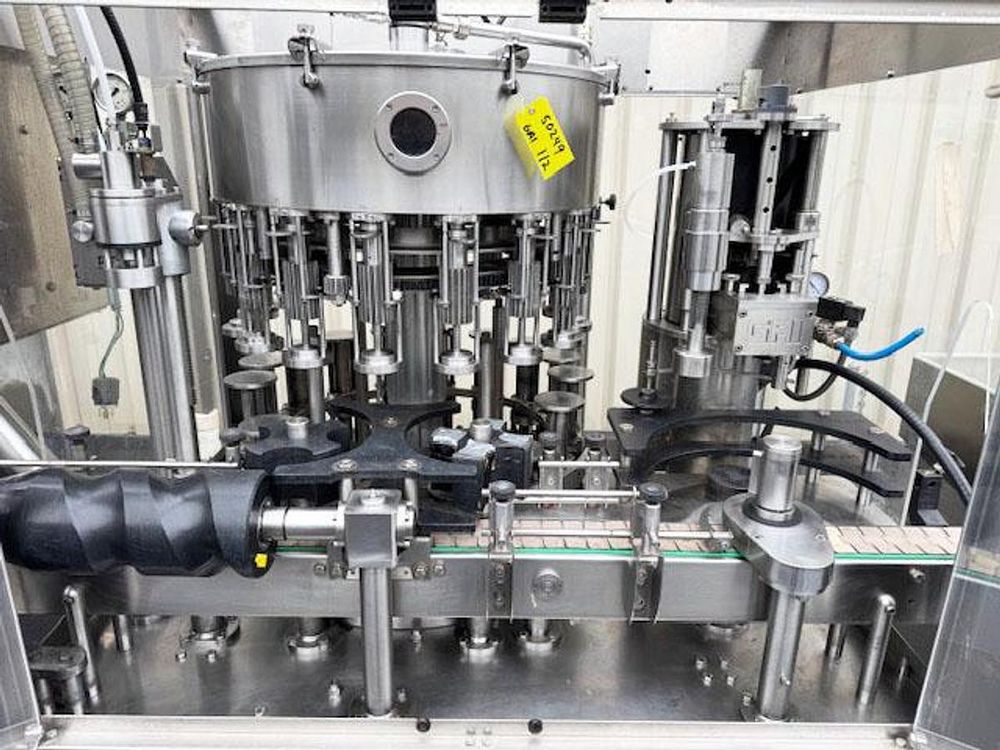

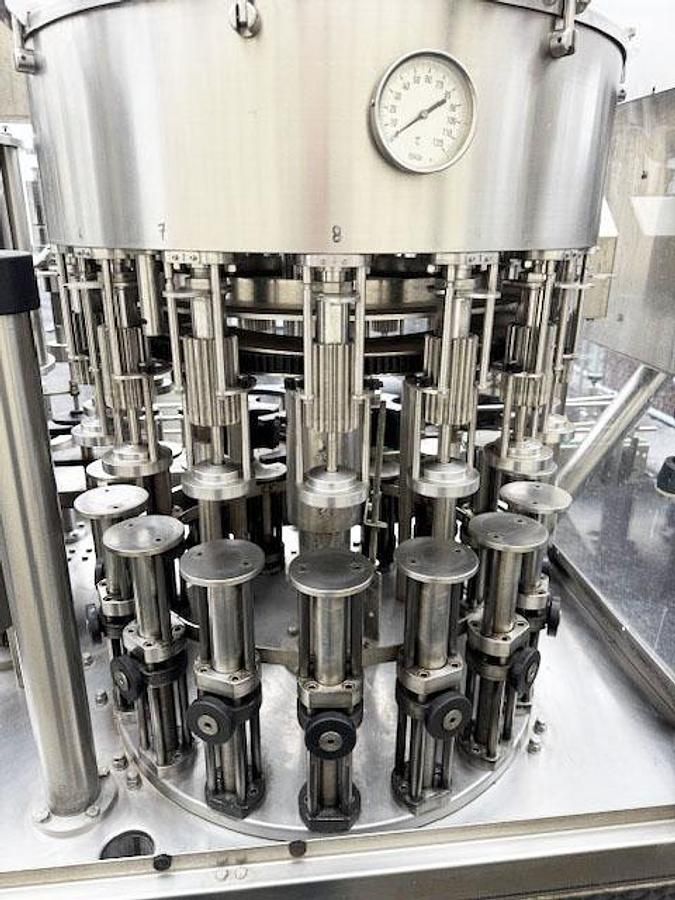

- 16-Valve Gravity Rotary Filler with 5.75” Valve Pitch

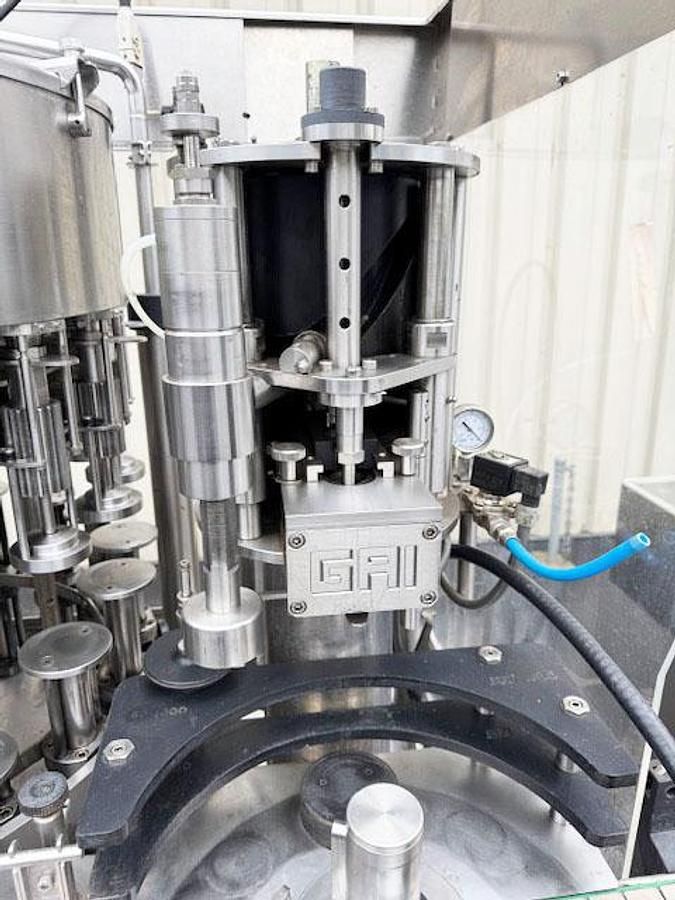

- 1-Head Corker presently set for straight wine corks
- Factory Rated up to 3000 BPH
- Left to Right (Clockwise) Operation
- Stainless Steel Construction
- Includes (1) Set Existing Bottle Handling Parts for 750ml Round Glass with Timing Screw
- Includes Cames Cork Feed System, Model ALX 1
- 3.25” Wide x 80” L Pull Through Conveyor Section
- Conveyor Elevation 40” (adjustable)
- 3.25” Wide Plastic Tab Conveyor Chain-Belt
- (4) Threaded Floor Levelers (Filler)

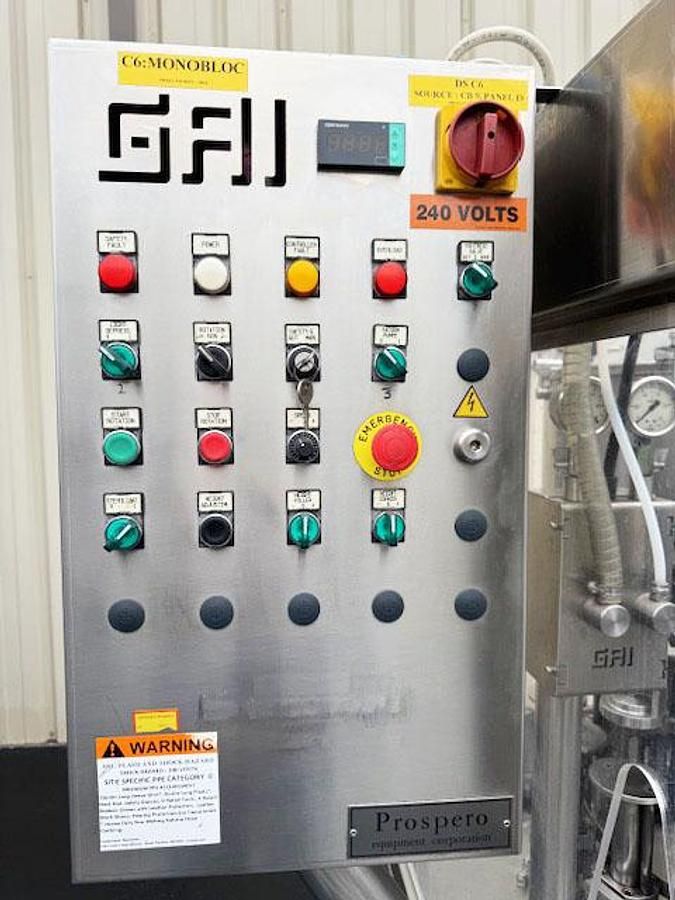

- Operator Panel with E-Stop
- Electronic Filler Bowl Height Adjustment
- Electrical 240 Volt, 3 Ph, 60 Hz, 21 Amps, (Filler)
- Dimensions 80” L x 49” W x 80” H (Filler)

Includes;

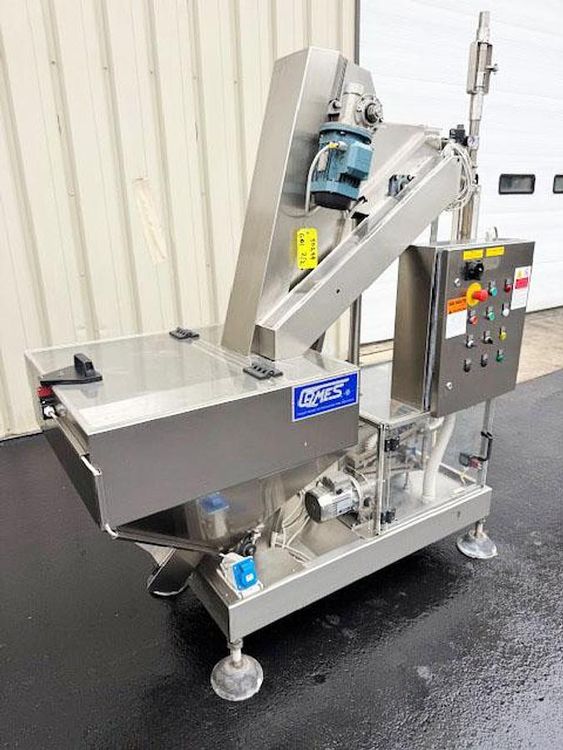

CAMES Cork Orientor Feed System
- Manufacturer: Cames Wine Industry Machines, Canelli Italy
- Model ALX 1
- (approx.) 10 Cubic Foot Stainless Steel Cork Hopper
- Hopper ID 31” L x 31” W x 28” Deep
- (4) Threaded Leveler Legs (Cork Feeder)
- Operator Panel with E-Stop
- CE Rated
- Electrical 240 Volt, 3 Ph, 60 Hz, (Feeder)
- Dimensions 72” L x 32” W x 86” H (Feeder)
