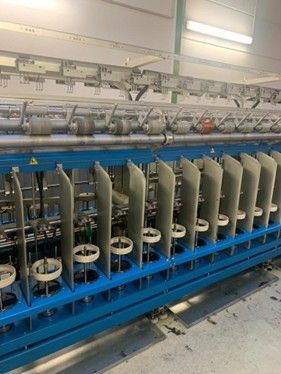

Galan CRB 225/60 Doubling and twisting machine
EUROPE (Western and Northern)
60 positions (30 per side)
140 mm x 16.7 mm ring diameter
225 mm gauge
270 mm traverse
S and Z twist
Individual drives and belt driven
68 kW motor
380 V, 50 Hz, 6 Bar
With approx. 13,000 bobbins (aluminum and plastic)
Up to 26,600 deniers
Spindle speed up to 8400 RPM
Double Line Bottom Roll
Large Pressure Cot
3 Ply Capacity, Overhead Tensioners
Double Flange Bobbin, 120mm Ø Top & Bottom
Lubricated Ring via Oil Pump
Side Creel
Lapet Plate with Stop Motion Sensor
Balloon Limiter
Balloon Separators
