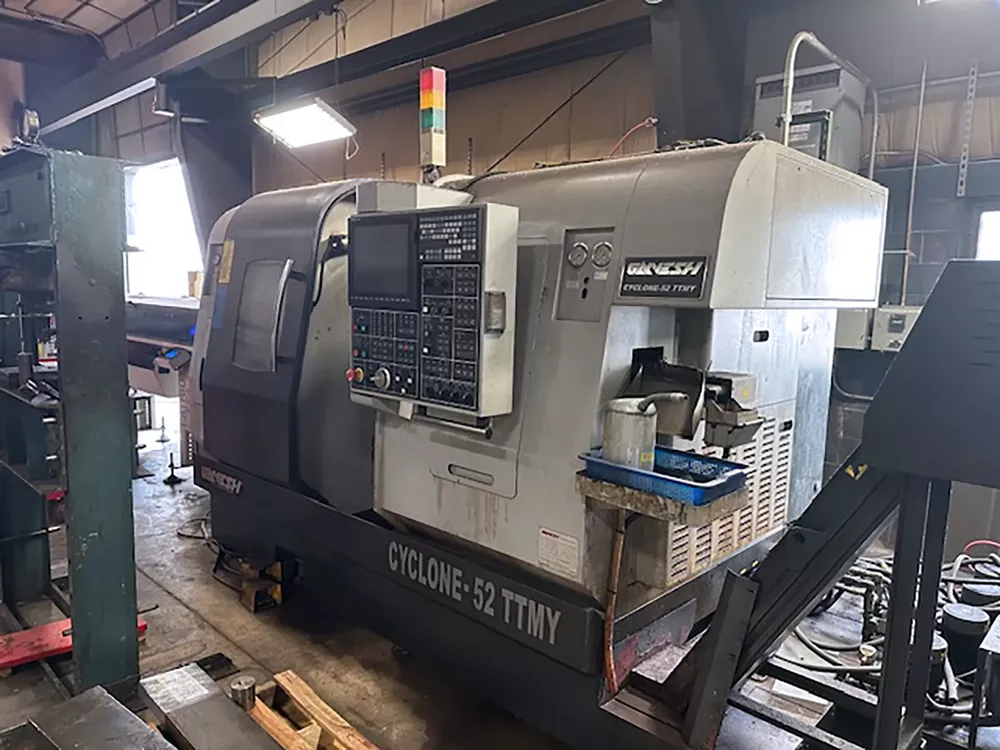

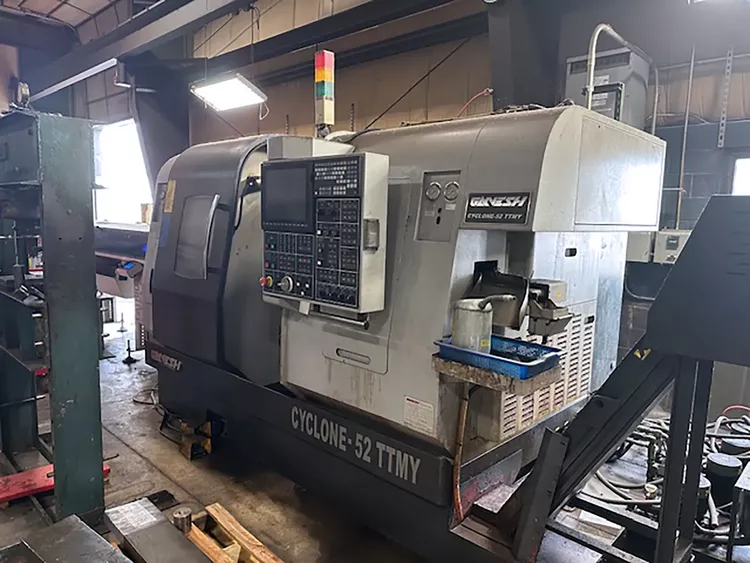

Ganesh Mitsubishi M700 6000 RPM max Cyclone‑52 TTMY 6 Axis

Ganesh Cyclone‑52 TTMY
Year: 2014

X‑axis (upper turret) travel: 5.94″
X‑axis (lower turret) travel: 9.05″
Z‑axis travel (both spindles): 17.32″
Y‑axis (upper turret) travel: ±1.38″
B‑axis (sub‑spindle): 25.59″
C‑axis (main & sub spindles): 360° full contouring, 0.001° resolution

X‑axis rapid: 630 IPM
Z‑axis rapid: 1573 IPM
Y‑axis rapid: 236 IPM (6 m/min)
B‑axis rapid: 1573 IPM (40 m/min)

Control: Mitsubishi M700
Renishaw tool setter

Bar capacity: 2.0″
Max turning diameter: 7.48″
Max cutting length: 15.75″

Spindle speed: 6000 RPM max
Spindle power: 20 HP peak (15 HP continuous)
Spindle nose: A2‑5
Spindle bore: 2.40″
Milling specs (live tools): speed 4000 RPM, power ~7 HP

Chuck and tooling: dual live‑tool turrets, 16 stations each (32 total)
Tool holders: BMT‑65, accepts 25 mm tooling and ER‑32 collets
Turret indexing: 0.2 s adjacent, 1.2 s 180°

Machine dimensions: 150″ × 105″ × 90″
Machine weight: 25,000 lbs
