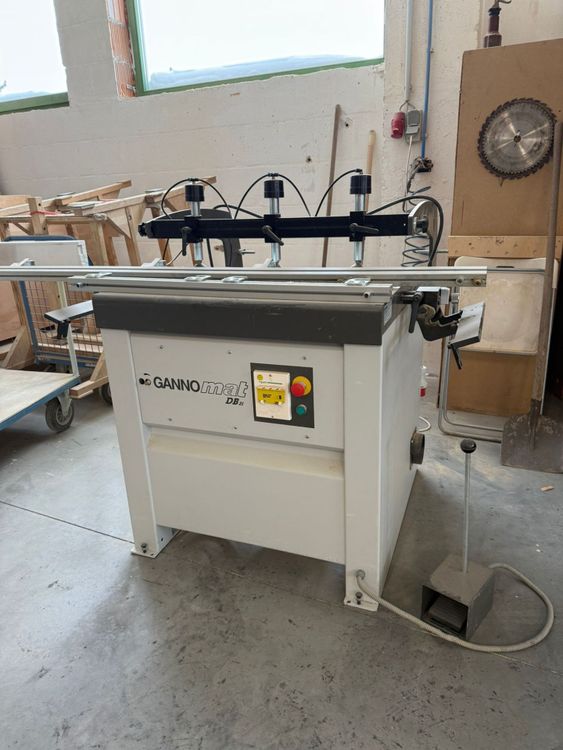

Ganner DB 21

Dowel drilling machines
Fully automatic electronic control with foot valve for clamping-drilling-unclamping, electric intermittent operation,
Automatic return of the drilling unit after reaching the set drilling depth
Automatic borehole depth extension when drilling on the end face.
This eliminates the need to adjust the borehole depth from flat-side to end-face drilling.
(+ 10 mm, e.g., with a dowel length of 35 mm, a flat-side drilling depth of 14 mm, and an end-face drilling depth of 24 mm).
1 drill beam with 21 spindles, 32 mm pitch, 1.5 kW motor (drilling feed 0-70 mm) including 21 quick-change chucks (Ganner system) for easy drill bit changes.
Easy swiveling of the drilling unit from 0° to 90°, assisted by a gas cylinder.
1 adjustable clamping bracket in the Y-axis with 3 pneumatic clamping cylinders, for workpiece heights up to 80 mm

Ideal stop system consisting of:
1800 mm stop rail for drilling intermediate shelves (40x40 mm aluminum profile) with 3 drop stops,
with quick-change system, easily switchable from right to left stop side for mirrored drilling of intermediate shelves in cabinet constructions,
also suitable for drilling holes in a 32 mm system.
Side stops and position settings, as well as the drilling height position via the support table, are indicated by mechanical digital counters.
Side stops can be easily swung out of the way for quick changeovers from cabinet to frame and for drilling holes in a series.
Clamping arms for the clamping bracket designed for hole positions up to 300 mm.
Ideal three-stage tool system.
Weight: approx. 400 kg gross, approx. 350 kg net
Dimensions: (Length x Width x Height) 1.35 m x 1.25 m x 1.40 m
