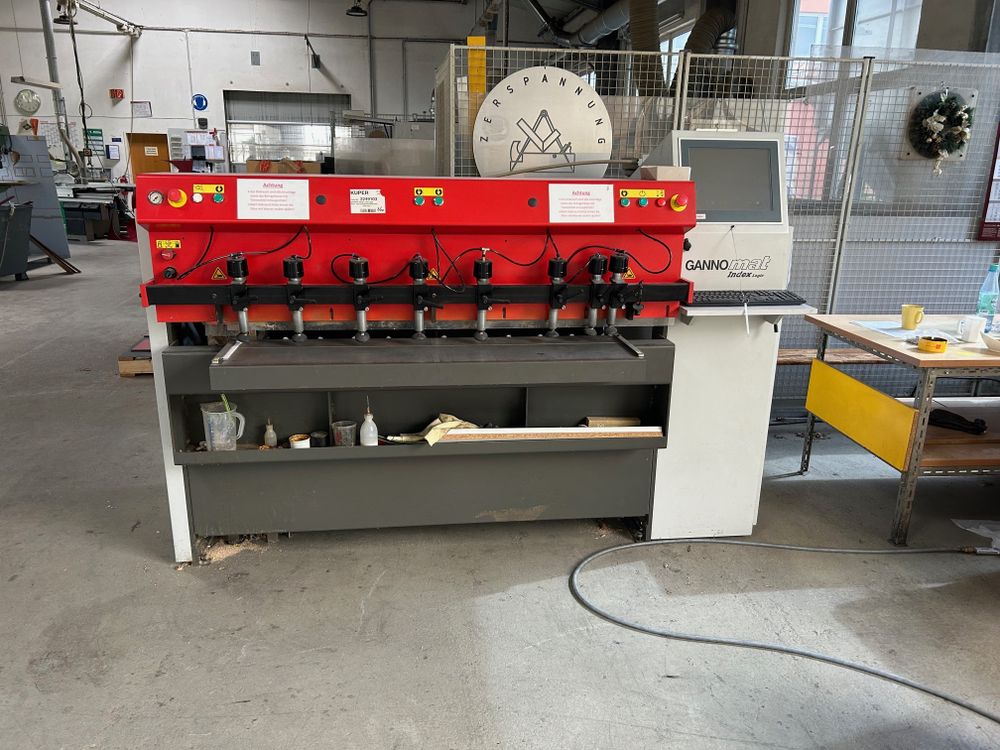

Ganner Index Logic 130 Typ 471L130

Used machine
Equipment and technical specifications:
Complete in standard version with:
- Support with linear guide consisting of:
1 pc. Single-spindle horizontal drilling unit, motor 0.65 kW, stroke 70 mm
Tool speed selectable via operator software (3000/5000/8000 rpm)
1 pc. blow-out, glue and dowel drive-in station for dowels Æ 8 mm, dowel length 25-50 mm
- Fully automatic, electronically controlled central lubrication
- X-axis NC controlled, with working length 1300 mm, travel speed max. 105m/min.
- Z-axis manually adjustable via mechanical digital counter, position via support table 5-40 mm
- Dowel drive-in projection of 7-20 mm adjustable via mechanical digital counter, drilling depth of 0-35 mm
(for drill length GL 70 mm) is automatically adjusted with drive-in projection
- Closed glue system with 6 bar glue pressure over glue nozzle, for glues with a viscosity of 150 to 350 mPas
- Glue quantity infinitely adjustable via operator software
- selector switch LEIM/WATER for flushing the glue system with:

1 stainless steel container for 7.5 kg glue and 7.5 l water
- Control lamp for glue residue indicator in the glue container
- 1 pc. Side stop left, 1 pc. Side stop right and 1 pc. Center stop (all removable)
- 4 pcs. Start buttons for individual work with 1-4 workpieces
- 4 pcs. Pneumatic slashing cylinder 10° for workpiece thicknesses up to 80 mm, workpiece length (Y) min. 70 mm
- 1 pc. Suction funnel, connection Æ 80 mm

1 pc. TCT control with:
Built-in industry PC,incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C,
TFT Industrial Display 15“ Touchscreen Capacitive, Operating System: WINDOWS 7
- Programming through menu-guided user software, drill distances freely programmable with
ABSOLUTE, RELATIVE or GRID dimensioning, automatic workpiece mirroring and operation-
optimization, 4 working fields with different programs recordable, graphical workpiece representation,
parametric programming, 0-point shift, programmable work lists, error diagnosis with plain text

Options:
1 G.I.C. electronic optical glue monitoring system
(Glue Insert Control) for 1 pcs. Glue nozzle

1 Z-axis with NC-controlled, dynamic positioning for height adjustment
the drilling and dowel drive station (programmable from 5-40 mm)
Travel speed max. 30 mm/sec.

1 single-spindle vertical drilling unit of OBEN drilling, 0.65 kW,
(3000/5000/8000 rpm), position (Y) manually via mechanical digital counter
adjustable from 5-40 mm, drilling depth (Z) max. 30 mm (for drill length GL 57 mm)
Workpiece thickness (Z) max. 50 mm, workpiece length (Y) min. 130 mm
(incl. Drilling depth compensation e.g. for Häfele Minifix)

4 Vertical slanting clamping cylinder 10° with bracket, additional,
1 keyboard with bracket
