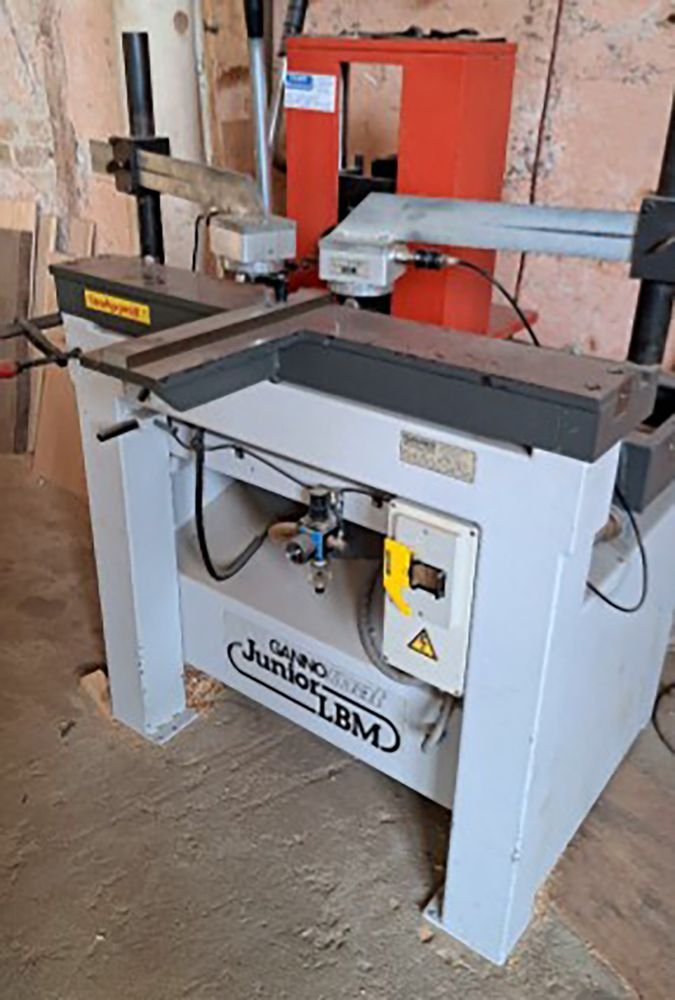

Ganner LBM Junior 320
Ref :
2749766-15-MT
Condition :
Used
Manufacturer :
Ganner
Model :
LBM Junior 320
Year(s) :
1993
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Frame dowel drilling machine
Used machine
Workpiece clamping height: up to approx. 250 mm
Mortise drilling device with 2 program cams (lowerable)
2-jaw drill chuck for up to 20 mm shank diameter
Pneumatic position adjustment on 2 levels 0-100 mm
Max. drilling depth 150 mm
Precision grid rail 12 mm
Center locking and transverse adjustment
2 pneumatic Safety clamping cylinder
Motor 1.5 kW
Speed 2800 rpm
Space requirement with stop and working area: approx. 1200 × 1000 mm
Dimensions (without stop): 1100 x 1100 x 1500 mm
Weight: 310 kg
