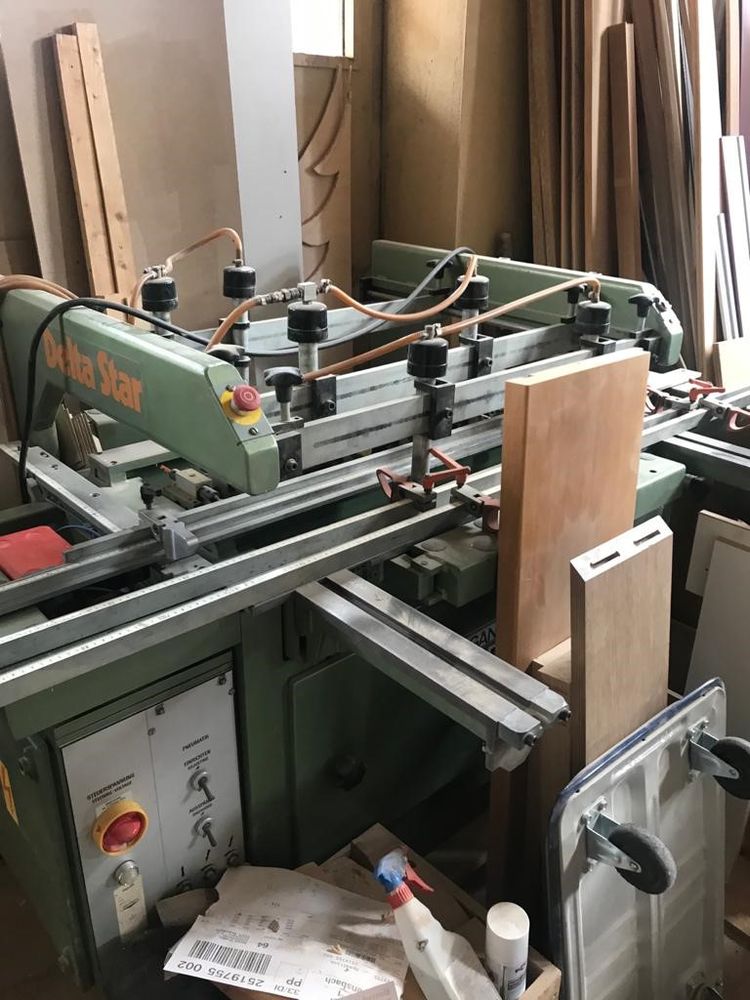

Ganner Delta Star

Dowel drilling machine
Used machine
Condition: Functionally tested

Technical specifications:
Fully automatic pneumatic sequence control
(clamping-drilling-unclamping) using a separate start button for each program
Drill spindle spacing (hole center): min. 32 mm, max. 800 mm
Distance between stop and drill hole line: min. 10 mm, max. 550 mm
6 drill heads
Number of drill spindles on the drill head: 2
2 motors, 1.5 kW each
Spindle speed: 3000 rpm

For horizontal and vertical construction drilling
For vertical line drilling in 32 mm increments
Vertical drilling unit with double-spindle drill heads freely positionable on the index shaft

1.5 kW motor with 1400 rpm
1.5 kW motor with 2800 rpm
Drill heads with pneumatic stroke
Pneumatic material clamps
Passage width approx. 850 mm
Including various stops and drills
