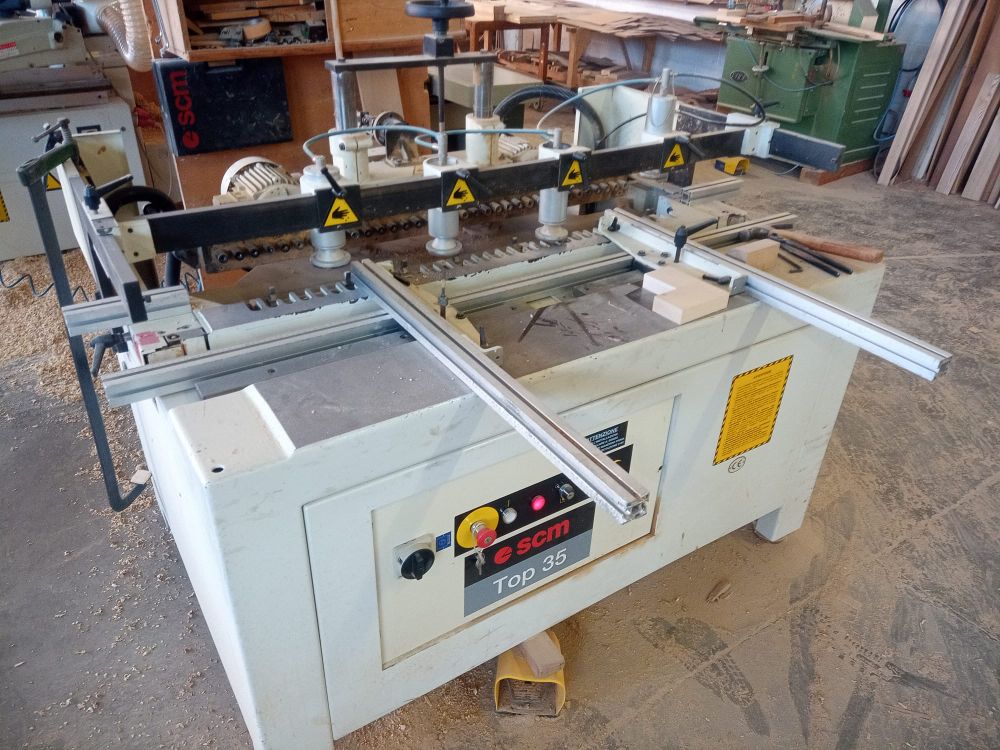

SCM TOP35
Ref :
2786196-15-MT
Condition :
Used
Manufacturer :
SCM
Model :
TOP35
Year(s) :
2022
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Multiple Drilling Machine:
– Top drilling, with motorized positioning of the drilling head, tiltable to any angle from 0 to 90°
– 35-spindle drilling head with threaded attachments
– Drilling head with 2 motors, total power 4.4 kW (6 hp)
– Head rotation motor 0.26 kW (0.35 hp)
– Maximum drilling unit stroke 127 mm
– 6-position drilling depth turret
– Hydraulic brake with adjustable stroke 50 mm
– Worktable dimensions 1255 x 500 mm
– Min./max. Panel thickness 10/70 mm
– 4 pressure pistons for panel locking
– With 1500 mm aluminum guides and reference stops
– Overall dimensions approximately 1.7 x 1.5 x h=1.7 m
CE-certified machine
Good overall condition
