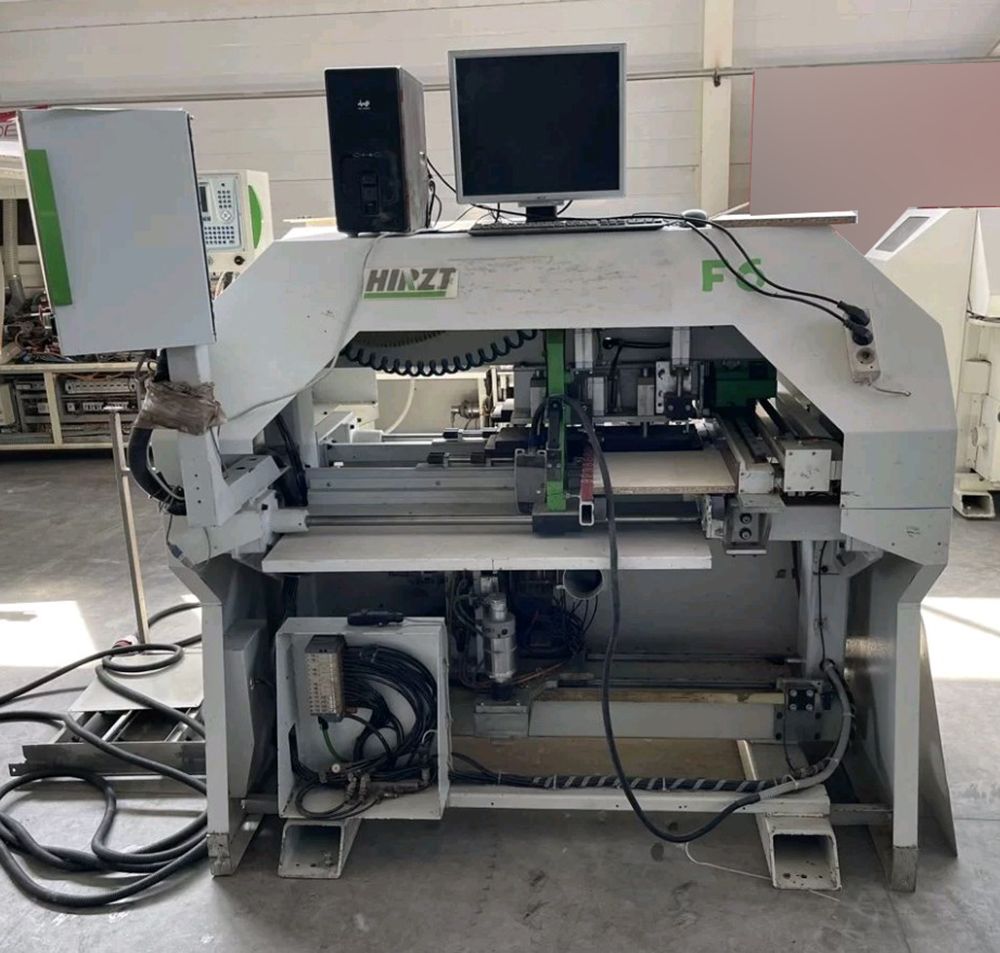

Hirzt F6

7 vertical spindles
2+2 horizontal spindles for front/rear face drilling

Dimensions of workpieces
Length: min. 240…max. unlimited
Width: min. 100…max. 800 mm (workpiece width – 600 mm)
Thickness: min. 10…max. 50 mm

Technical specifications :
• Number of spindles 11 pcs.
• Workpiece feed speed up to 30 m\min.
• Total power 3.5 kW
• Spindle speed 3400 rpm
• Drilling diameter up to 35 mm
• Suction system diameter 100 mm
• Suction speed 30 m\sec
• Pressure 6 atm.
• Parametric CN control
• Dimensions 1200х1633х1682 mm
