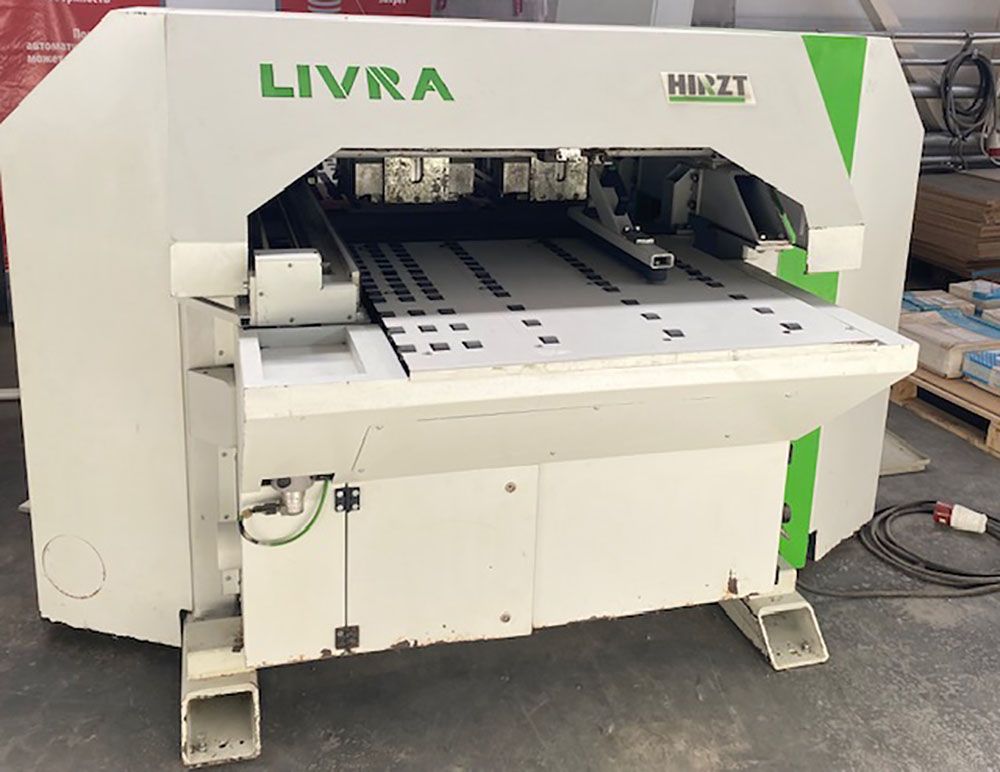

Hirzt LIVRA

Specifications:
Number of spindles 17 pcs.
Grooving unit Ø120 mm
Feed rate of the workpiece 30 m/min.
Motor power 3.5 kW IP55 design
Rotation speed 3400 rpm
Shank diameter up to 16 mm
Drilling depth up to 70 mm
Drilling diameter up to 35 mm
Exhaust pipe diameter Ø120 mm
Air flow speed 30 m/sec
Compressed air pressure 6 atm.
PNEUMAX pneumatics
INA bearings.

Drill head configuration:
1) 12 vertical spindles
2) 2 horizontal spindles for face drilling at the front
3) 2 horizontal spindles for face drilling at the rear
4) 2 horizontal spindles for drilling the left side end
5) 2 horizontal spindles for drilling the right side end
6) 1 grooving unit Ø120 mm
Dimensions of workpieces:
Length: min. 240 … max. unlimited
Width: min. 50 … max. 800 mm.
Thickness: min. 10 … max. 50 mm.
