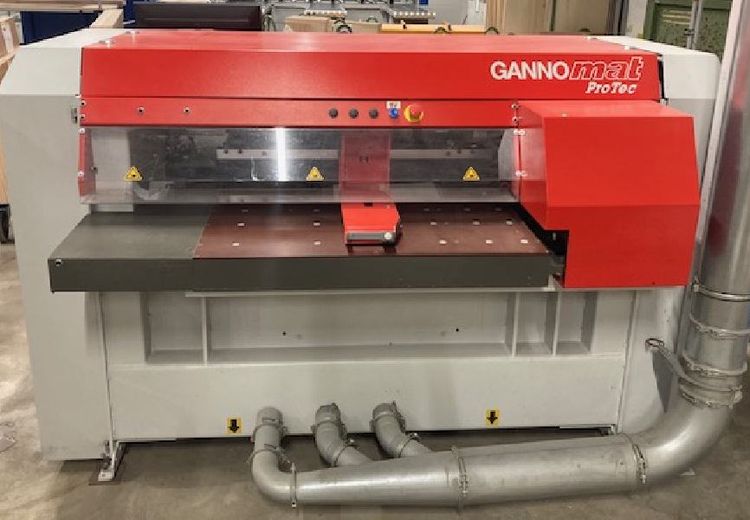

Gannomat Protec 571 CNC

CNC-controlled precision machining center
Machining unit with PowerBlock with 21 spindles and 1 grooving saw:
13 vertical drilling spindles
6 horizontal drilling spindles in Y
2 horizontal drilling spindles in X
1 grooving unit in Y

Profit milling unit 4.5 kW, 3000 - 18000 rpm with frequency converter
Workpiece width (X) min. 85 mm / max. 1000 mm
Workpiece thickness (Z) min. 6 mm / max. 60 mm
Workpiece length (Y) min. 285 mm in through-feed mode / max. 5600 mm programmable workpiece length in software
Workpiece weight max. 70 kg

Machining speeds per axis:
on the X-axis max. 90 m/min.
on the Y-axis max. 30 m/min.
on the Z-axis max. 15 m/min.
