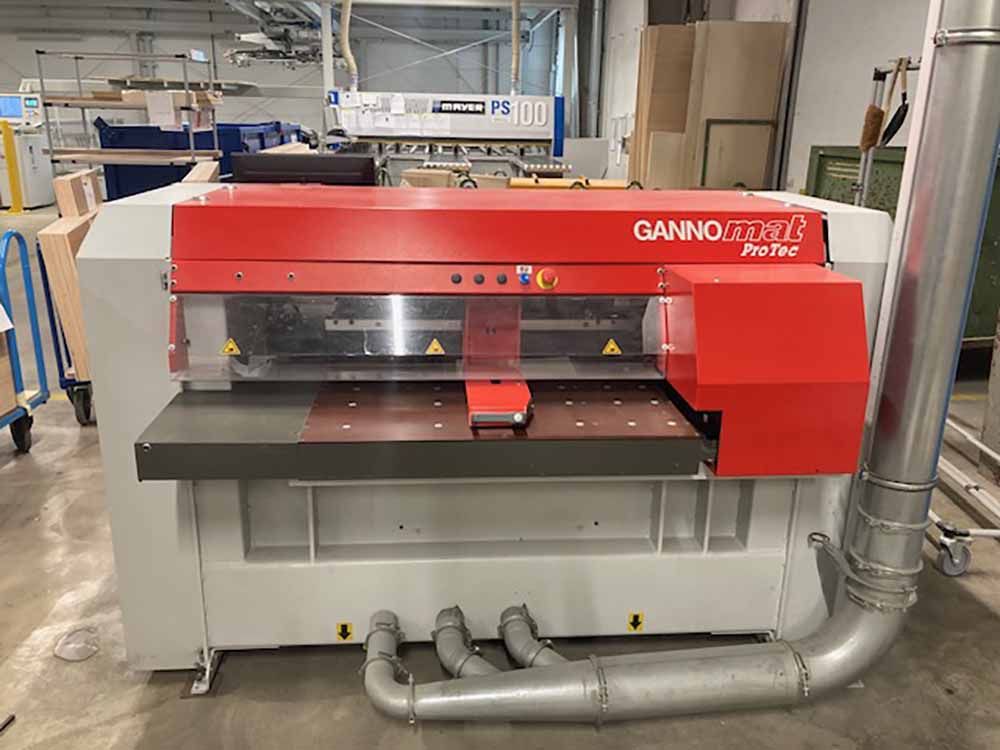

Gannomat ProTec 571

CNC machining center
Technical data:
- Precise steel worktable, working stroke length 1000 mm (X-axis) and working height 905 mm

Workpiece size:
- min. 85 mm / max. 1000 mm on the X-axis
- min. 285 mm / max. unlimited (max. 70 kg) on the Y-axis
- min. 6 mm / max. 60 mm on the Z-axis

Processing speeds per axis:
- max. 90 m/min on the X-axis
- max. 30 m/min on the Y-axis
- max. 15 m/min on the Z-axis

- Drilling unit BK6 with 1.5 kW motor, 3200 rpm:
- Vertical spindles - 13 pcs.
- Horizontal spindles - (3+3) on Y-axis - (1+1) on X-axis
- Milling unit 4.5 kW, 3000 - 18000 rpm
- Grooving unit in Y
