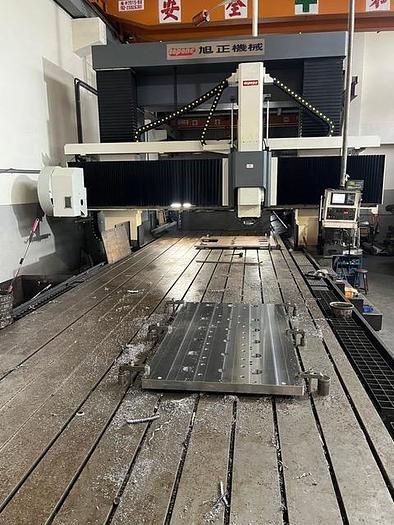

GANTRY SK-3512 TOP-ONE Distance between columns: 3700 mm 4500 rpm
Ref :
2793377-3-MT
Condition :
Used
Manufacturer :
-
Model :
GANTRY SK-3512 TOP-ONE
Spindle Size :
Distance between columns: 3700 mm
Spindle Speed :
4500 rpm
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
X-axis travel: 12000 mm
Y-axis travel: 3600 mm
Z-axis travel: 1000 mm
Control: Mitsubishi M700
Manual 90° angle head
Spindle oil cooler
Table size: 3000 x 12000 mm
Table load capacity: 50000 kg
Spindle to table distance: 0–2000 mm
Spindle speed: 60–4500 rpm
Spindle motor power: 18.5/22 kW
Spindle taper: BT50
Tool magazine capacity: 24 tools
Machine dimensions: 28550 x 7670 x 6800 mm
Machine weight: 125000 kg
