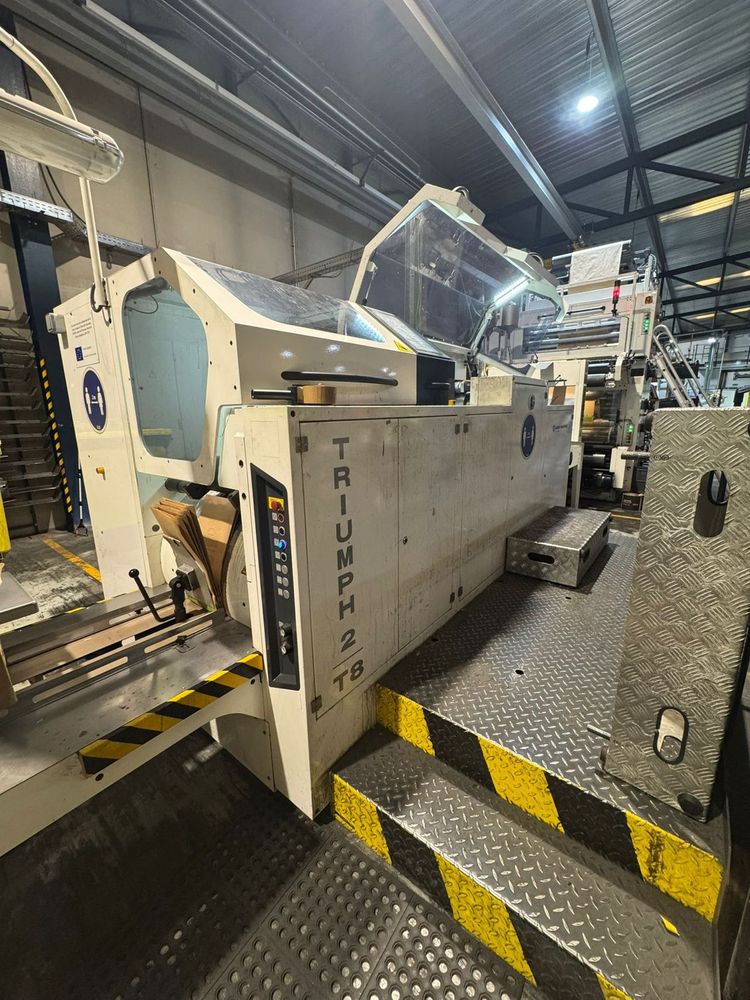

Garant Triumph 2 – T8 Servo

With flat handle unit, servo window die cut unit and thumb hole unit
Servo driven block bottom bag machine designed for flexible production
The TRIUMPH 2-T8 is an advanced solution for small and medium-sized paper bags,
combining high automation, fast changeover times and excellent job repeatability.
Thanks to its full servo technology, it is ideal for short runs and frequent job changes, ensuring high efficiency and reduced downtime.

Suitable for:
Industrial packaging
Retail paper bags
Food & takeaway bags
Bags with or without handles
Min – max bag width: 80 – 280 mm
Min – max shopping bag width: 180 – 280 mm
Min – max bottom width: 50 – 160 mm
Min – max cutting length for bags: 250 – 550 mm
Minimum cutting length for shopping bags (excluding handle): 270 mm
Minimum cutting length for shopping bags (including handle): 550 mm
Kraft paper grammage: 50 – 130 gsm
Minimum distance between handles and open web must be at least 250 mm

Unwinding:
Max. paper width: 900 mm
Max. paper roll diameter: 1300 mm
Core diameter: 76 mm

Handle:
Roll width (handle strip) – 3 layers: 45 mm
Roll width (handle strip) – 5 layers: 80 mm
Roll diameter: 1000 mm
Inner core diameter: 76 mm
Paper grammage: 100 – 150 gsm
Plastic handle (LD-PE with 20% HD-PE): 0,220 mm
Handle width: 18 mm
Handle length: 350 – 500 mm

Reinforcement patch:
Paper roll width: 180 mm
Paper roll diameter: 1000 mm
Sheet length: 70 mm
Inner core diameter: 76 mm
Paper grammage: 80 – 120 gsm
Speed for simple bags: 150 – 200 bags per minute
Speed for bags with die cut and handle: 120 bags/min
Speed for bags with handles, plastic window and die cut: 75 – 120 bags/min
Theoretical machine’s mechanical speed: 250 – 300 bags/minut
Lifetime production: 40.043214 bags
Electrical connection: 230/400 V, 50/60 Hz
Power consumption: approximately: 87 kVA
Visible in production
Delivery time: June 2026
