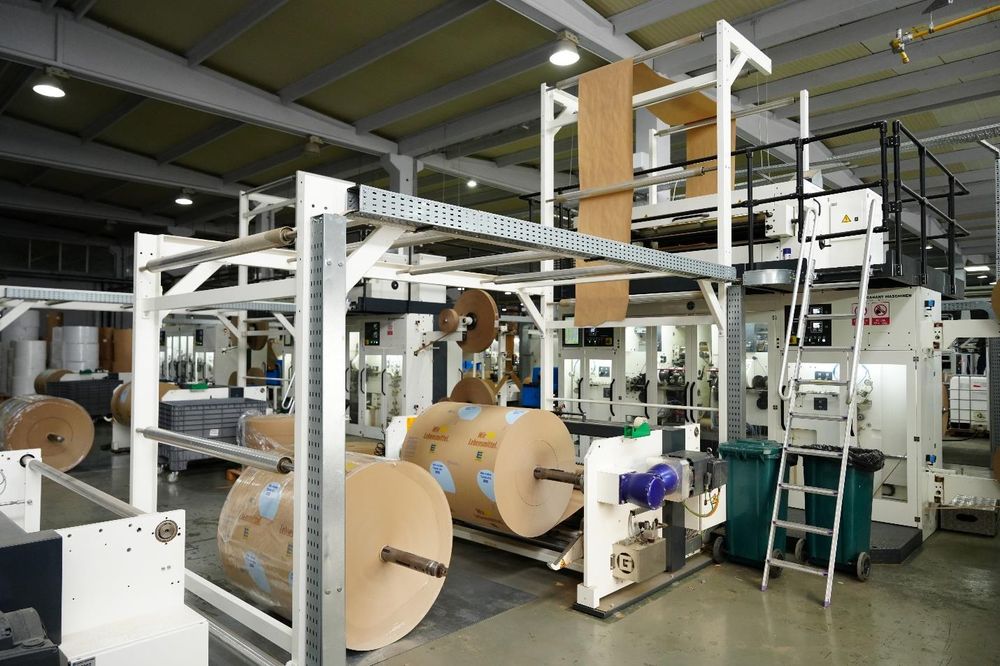

Garant Triumph 5 QT

2 ply
Servo technology
With flat handle unit
For production of large format block bottom and carrier bags
Max paper width: 1450 mm
Min – max bag width: 180 – 460 mm
Min – max bag width (with handles): 200 – 460 mm
Min – max gusset depth: 70 – 250 mm
Min – max cutting length: 360 – 770 mm
Min – max bottom width: 70 – 230 mm
Patch size: 60 – 80 mm
Max processable paper width: 1370 mm
Max roll diameter: 1300 mm
Inner core diameter: 76 mm
Paper grammage: 70-180 g/m2
Flat handle unit:
Handle strip (roll width)
3-ply: 45 mm

5-ply: 80 mm
Max. paper roll diameter: 1300 mm
Core diameter: 70 – 76 mm
Paper grammage: approximately 60 – 130 g/m2
Film quality (for plastic handle): blend 20% HDPE + LDPE
Max handle height: 95 mm
Max handle system height: 175 mm
Max handle width: 110 mm
Max handle strip width: 18 mm
Handle strip length: 350 mm
Handle reinforcement patch:
Max paper roll diameter: 1300 mm
Min – max reinforcement patch length: 50 – 80 mm
Min – max reinforcement patch width (paper roll width): 170 – 180 mm
Core diameter: 76 mm
Paper grammage: 80 – 120 mm
High production speed
CE certified
Stopped
Immediately available
