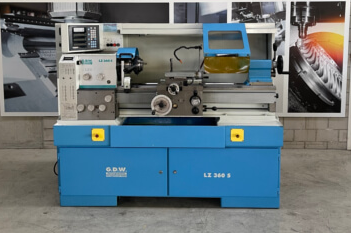

GDW Engine Lathe 3000 rpm LZ 360 S
Ref :
2753992-3-AW
Condition :
Used
Manufacturer :
GDW
Type :
Engine Lathe
Spindle Speed :
3000 rpm
Model :
LZ 360 S
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Swing over bed 355 mm
Swing over cross slide 195 mm
Distance between centers 800 mm
Spindle head DIN 55027 size 5
Tailstock quill travel 110 mm
Tailstock quill diameter 50 mm
Tailstock taper DIN 228 MK 3
Speed range 150–3000 rpm
Feed range “fine” 0.025 mm
Feed range “steep” 2.0 mm
Thread pitch 0.2–14 mm
Maximum workpiece weight between centers 100 kg
Machine dimensions approx. 1850 × 900 × 1400 mm
Weight 1400 kg
