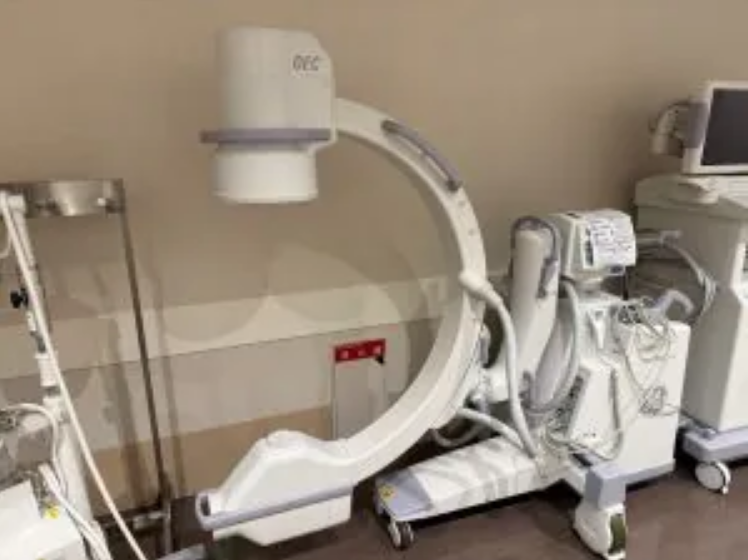

GE, OEC 9900 Elite Angio

Core Specifications & Imaging
Generator: 15kW, 60kHz high-frequency generator.
kVp Range: Up to 120 kVp.
Fluoroscopy Modes: Continuous (up to 20 mA),
Pulsed Fluoro (1, 2, 4, 8 pps), and High-Level Pulsed Fluoro.
Digital Spot/Cine: Digital cine pulse up to
30 pulses per second (up to 150mA).
Image Intensifier (I.I.): Available in Tri-mode 9”/6”/4.5” or
12”/9”/6” configurations.
Imaging Processing: Proprietary Dynamic Range Management (DRM)
that enhances vasculature while reducing background noise on a 1k × 1k × 16-bit chain.

X-Ray Tube
Type: Rotating anode X-ray tube.
Focal Spots: 0.3mm and 0.6mm nominal focal spots.
Anode Heat Capacity: 300,000 HU (per IEC 60613).
Anode Cooling Rate: 85,000 HU/min.
Housing Heat Capacity: 1,600,000 HU
