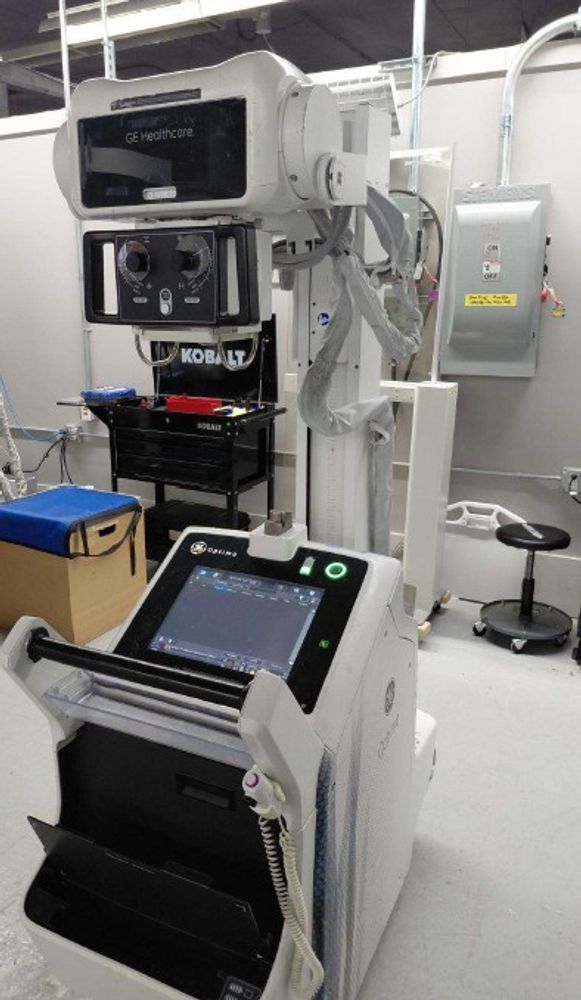

GE Optima 240 Portable X-ray

Integrated 15" touch-screen user interface
Storage for more than 5000 uncompressed images
Automated and customizable image transfer to PACS
Automatic charging algorithms allowing the system to be recharged at any charge level
Optimized Graphical User Interface – Technique, image acquisition and
display tools in a single integrated user interface
Smart Windowing algorithm for automatic adjustment of brightness/contrast
Nominal Tube Voltage (Radiographic) 40 ~ 150 kV
Nominal Focal Spot size (IEC 60336): Large Focus: 1.2 mm; Small Focus: 0.6 mm
Anode Rotation Speed (minimal): 3200 min per
Permanent Filtration: 0.9 mm Al/75 kV
Maximum X-ray Tube Current: Large Focus: 500 mA; Small Focus: 200 mA
Maximum anode heat units: 140 kHU
Exposure time: 4.0 msec – 6.0 sec
Capable of 100-240 V nominal, 50/60 Hz operation
30kW generator
Battery capability to perform up to 50 exams over 6 hours

Flashpad Detector
2022 HD Flashpad 14x17 wireless detector
Single panel silicon detector
Pixel pitch 100 microns
