GEA, Grasso THERMOFIN FX PP 2×650 DUO

INDUSTRIAL BLAST-FREEZING INSTALLATION

Cooling Capacity: 260 kW / 76 tons
Production Capacity: approx. 2,000 kg/h (depending on product)
Refrigerant: R717 / Ammonia
Voltage: 50/60 Hz, 400 V / 460 V
Absorbed Power: 272 kW

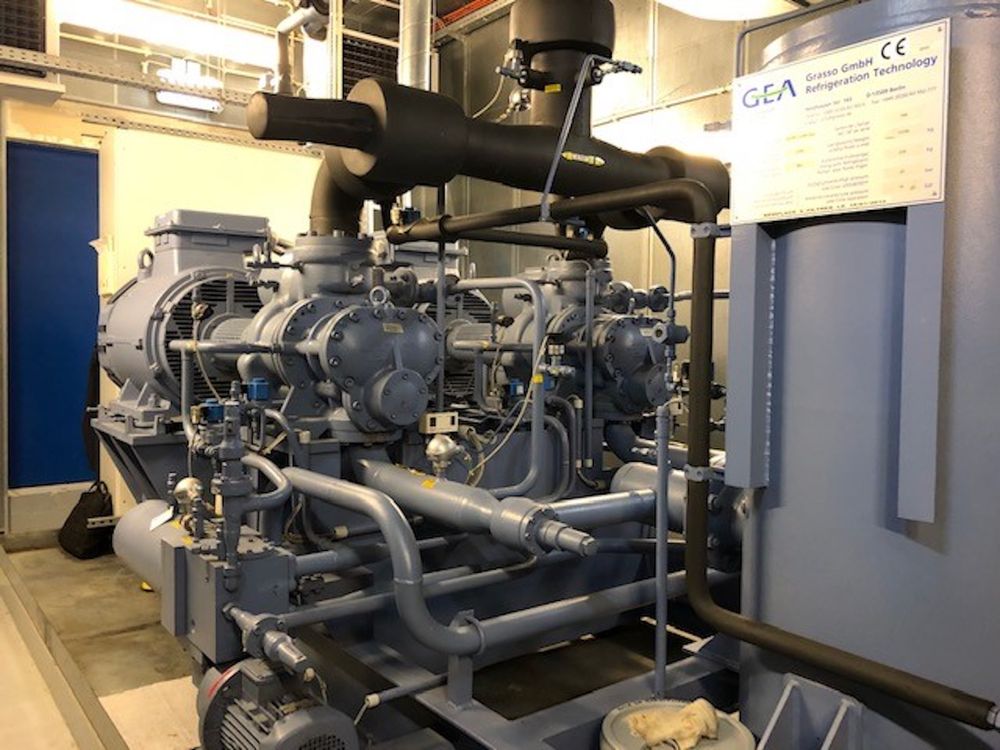

Compressor Package: Grasso / GEA screw compressors (2 units, type M-1 DUO)
Electric Motors: 2 × 160 kW Schorch
Oil Separator: Vertical, water-cooled or thermosiphon oil cooler
Oil System: Oil pump included
Control System: Siemens S7 PLC with HMI touchscreen
Software: Custom control software

Low Pressure Separator: -40 °C, 2 m³ volume
Ammonia Liquid Pumps: 2 units
ECO Vessel: -10 °C
Evaporative Condenser: Baltimore / Evapco (optional selection)

Evaporators: 2 × Thermofin floor-mounted blast-freeze units
Evaporator Capacity: 125 kW each at -40 °C evaporation
Fan Configuration: 4 fans per evaporator
Fan Power: 4 kW each
Air Flow: Horizontal
Material: Stainless steel construction
Defrost System: Hot gas defrost (coil block + drip tray)

Valves & Controls: Danfoss PM valves, floats, electronic controllers
Condition: Very good maintenance condition
System Layout: 2 separate freezing compartments
Application: Industrial blast freezing system
