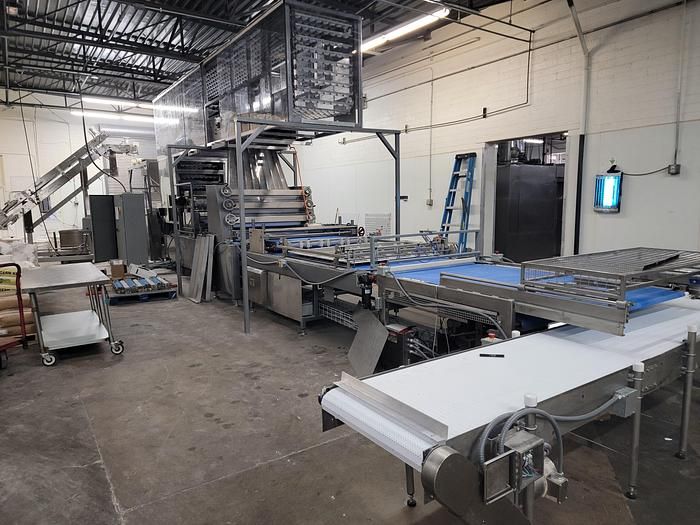

Gemini WP Roll Line

WP 8/10 Tewimat Roll line – overall dimensions: 48’ L x 11’ H x 55” W (Belt 52”)
DOM: 2002, Voltage: 460 / 3 ph
Brand New Electrical Package and Touch Screen Controls
Complete Dismantle and Evaluation
Replace any needed bearings, chains, sprockets
All Electric Motors will be sent out to be rewound
All Electrical contactors, relays, wiring, safety switches
Updated controls and control panel
Paint all exterior painted surfaces
Repair or replace any SS Panel missing or damaged
Replace all conveyor belting and covers for moulding boards
Replace any damaged Proofer trays/pockets
Hydraulic pump and cylinders and sent out for rebuilding
Replace all Plexiglass for Proover
Once Complete assemble and test operation with Product
Tewimat Divider uses no Oil for Dividing


Included:
Glimek Chunker – Mounted above WP Tewimat S 8 Divider Rounder
WP Tewimat S 8/10 Divider Rounder - 55" L
8 Pocket 1 to 6 oz.
48' L x 7-1/2' W, Belt width 55 Inch
Capacity up to 30,000 pc per hr.
No Divider Oil Required
2 Rounding Drums / 8 Across
Several dividing block arrangements
Overhead Proofer - 23' L x 78" W
Proofer 170 to 200 trays with an 8 to 10 minutes proof time
Heavy weight square tube design
Centralized Control Panel
Turret head roll stamper - Kaisers, Split, Portuguese rolls. - 77"
Sheeting Head - 73" L
3 head design – fully adjustable
Moulding Station – 52” Usable Belt - 99" L
Pre Moulding Board - 24" L
Can mould from 4” to 12”; see moulding boards below
Several Moulding Plates available
Reciprocating Panner with Row Control - 99"
Automatic Panning with Cross Conveyor
