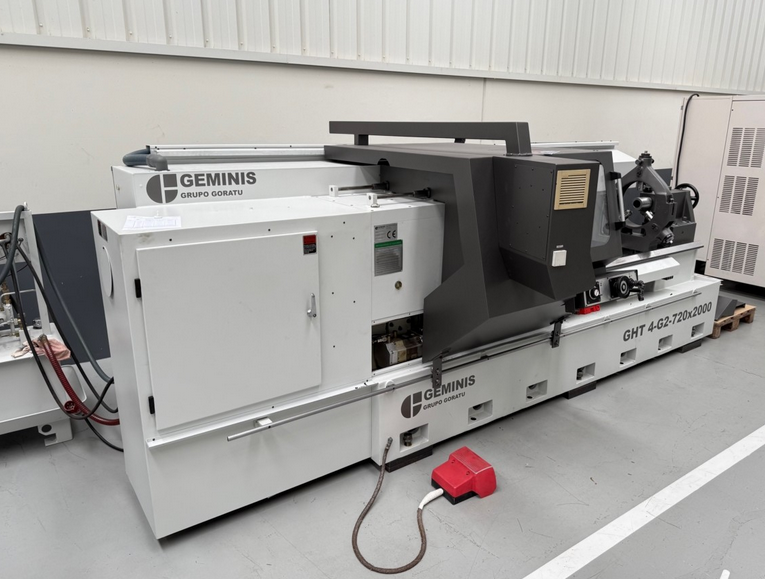

Geminis FAGOR 8055 1600 rpm GHT-4 720 x 2000 2 Axis

Turning diameter: 720 mm
Turning length: 2000 mm
Turning diameter over slide: 470 mm
Feedrate: 8 m/min
CNC control: FAGOR 8055
Spindle nose: DIN 55027 size 11
Spindle bore: 104 mm
Spindle speed range: 0–1600 rpm
Spindle motor power: 17 / 20.5 kW
Spindle torque: 1590 / 1920 Nm
Total power requirement: 28 kW
Tailstock quill diameter: 100 mm
Tailstock quill travel: 200 mm
Tailstock quill taper: Morse taper MT6
4-position automatic turret
Hydraulic 3-jaw chuck SMW Autoblok 400 GH
Fixed steady rest capacity: 50–220 mm
Full rear enclosure
Max workpiece weight between centers: 2560 kg
Max workpiece weight with 1 steady rest: 3200 kg
Max workpiece weight with 2 steady rests: 4000 kg
Max free-standing workpiece weight: 800 kg
Machine dimensions: 6600 × 2300 mm
Machine weight: approx. 4.9 t
