Geminis FAGOR 8065, 15" screen 700 rpm GT9 G2 2100×8000 3 Axis

Distance between centers: 8000 mm
Center height: 1050 mm
Max swing over bed: 2100 mm
Max swing over slide: 1600 mm
Cross slide travel: 1060 mm
C-axis prepared with transmission from main spindle
Prepared for milling head with Y axis on turret
Prepared for mounting grinding head
Control: FAGOR 8065, 15" screen
Main spindle bore: 150 mm
Speed range I: 0-80 rpm
Speed range II: 0-175 rpm
Speed range III: 0-350 rpm
Speed range IV: 0-700 rpm
Quill diameter: 400 mm
Quill travel: 300 mm
Max weight between centers: 30,000 kg
Main motor power: 100 kW
4 independent jaw chuck: Ø 1600 mm
Hard inner and outer claw set
Square auto turret: SAUTER 4 pos - Ø 320x320 mm
Motorized tailstock and quill
Rod accommodation: built-in swivel
Automatic tailstock body locking/unlocking
Air conditioner for electronic cabinet
Portable electronic steering wheel
Chip conveyor
Fixed closed rear window 4 supports: Ø 500-900 mm
Max rear window weight: 10,000 kg

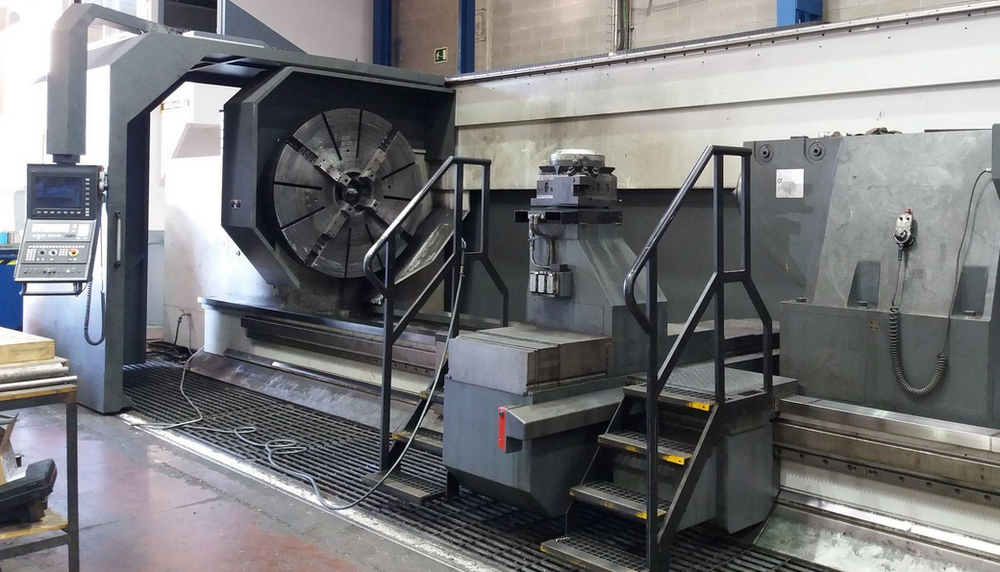

Extensively equipped with tools according to photos
