Ghioldi 3 LAYERS FILM EXTRUDER

3 LAYERS FILM EXTRUDER GHIOLDI (mounted and connected - immediately available)

connected, in very good conditions, can be seen in work on appointment or on a video call.
The line includes:
N. 2 extruders diam. mm.55, 78 kW 30 L/D
N. 1 extruder diam.75 mm. 142 kW, 30 L/D
n. 3 lever type screen changers
Melt control system
3-layers type 400 still die Ø mm.300 gap. mm.1,4
IBC cooling system
AM500/2 dual flow cooling ring
2 temperature exchange batteries
electrical cabinets with Mitzubishi inverters
Oscillating pull-off system

Gusseting units
FIFE web guider
Bubble driver with vertical adjustment and sensor for automatic bubble inflating (maximum Ø 1.175 mm.) for 3.580 mm. ca web circumference)** calibration cage can be replaced with a wider one.
Back to back winding station 1.680 with 4 expandible mandrels
Automatic film cutting
Automatic reel unloading system
Bolted 12 m.tall tower with 3 storey, ladders (10 m. at 3rd floor + 2 m. pull off)
Cason corona treatment

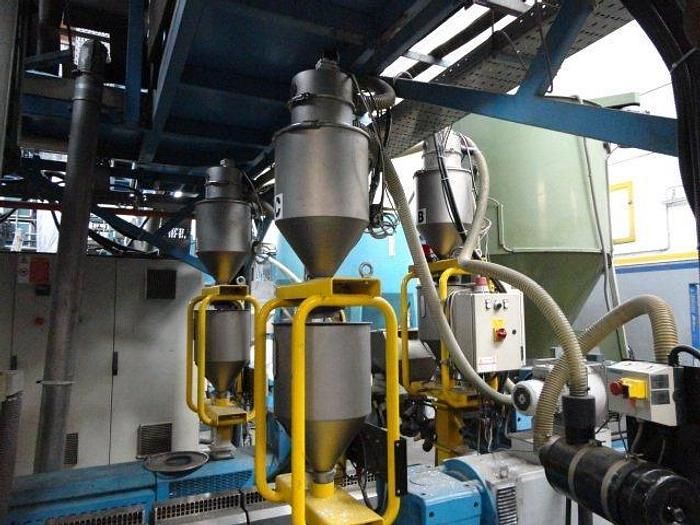

DOTECO gravimetrical units (1 for each extruder)

Electric cabinets
Some spare parts included
manuals, drawings, PLC English program
output : 300 kg/h depending on materials

Total installed power 460 Kw, used in work 200/250 Kw.
In our video you can see the line running with EXXONMOBIL virgin material :100% ENABLE
Making shrink film for 6-bottle wrapping, suitable for industrial film, tube, bags

Construction year 2007, completely reconditioned in 2013 and seldom used since then.

4 x 40' OT fcl needed.

Germanplast will offer post-sale assistance for spares and accessories.

THE SECOND VIDEO IS VERY DETAILED, IT LASTS HALF AN HOUR. SO BE PREPARED!
