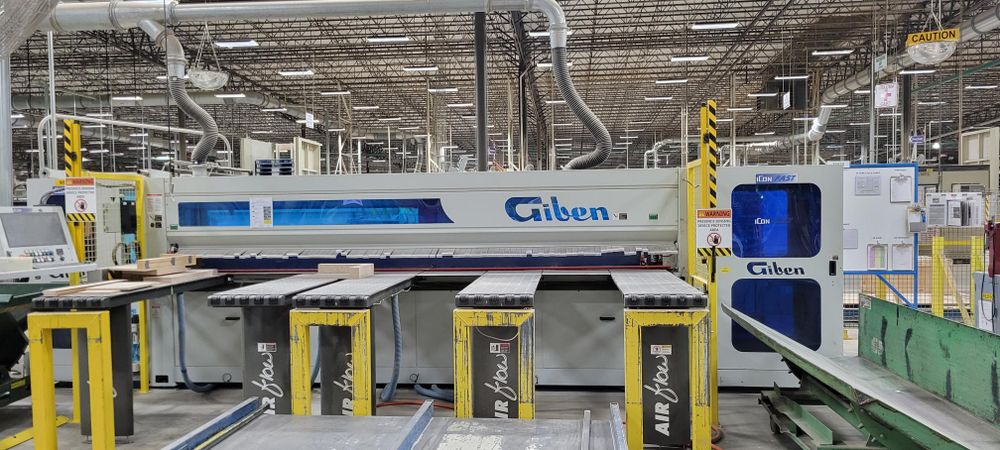

Giben ICON Fast LM XY 150 SPT

-Maximum cutting length: 3800 mm.
-Working table standard height (this may vary depending on maximum bunk height): 1100 mm.
-Saw blade projection: 150 mm.
-Gripper opening: 150 mm.
-Gripper closing: 1 mm.
-Qty. of air flotation tables 2000x510 mm.: 3
-Qty. of air flotation tables 1300x800 mm.: 2
-Control software: G VISION XP
-Minimum thickness of boards for side alignment: 10 mm.

-Features :
Giben "Y Cut" with moving grippers allowing the crosscutting of single stagger patterns in 1 crosscut cycle
Maximum size of the boards for automatic loading: 3800x1600 mm
Lift table dimension: 3800x1600 mm
Lift table stroke: 900 mm
Maximum bunk height: 830 mm
Stack loading direction: Rear
Lift table speed: 1.4 m/min
One (1) rear powered infeed roller conveyor 3800 x 1600
Set of three (3) power rollers for infeed conveyor
Set of three (3) power rollers for lift table
Table surface consists of rollers: YES
Max blade projection: 150 mm
Main motor: 40HP
Scoring motor: 3 Hp
Main blade diameter: 530 mm.
Scoring saw diameter: 100 mm.
Saw carriage forward speed: 1-240 m/min.
Saw carriage return speed: 240 m/min.
Saw carriage traverse motor: LINEAR
Bottom extraction point diameter (qty 1): 200 mm.
Top extraction points diameter (qty 2): 115 mm.
