Giddings & Lewis Bickford CHIPMASTER RADIAL DRILL 1600 RPM

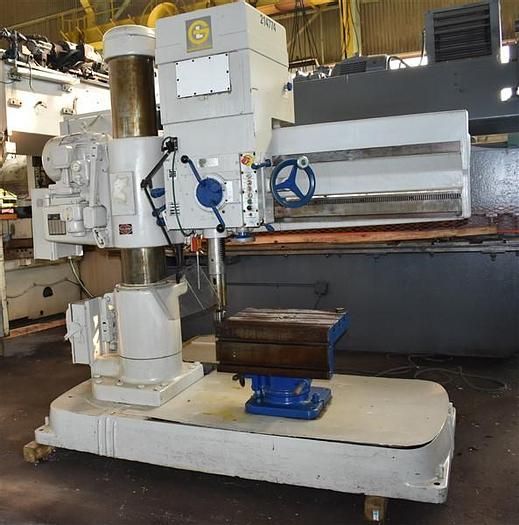

4'11" GIDDINGS & LEWIS-BICKFORD CHIPMASTER RADIAL DRILL

TAPPING CAPABILITIES
UNIVERSAL T-SLOTTED BOX TABLE
L-TYPE BASE - POWER ARM ELEVATION
POWER CLAMPING TO (ARM, COLUMN & HEAD)
POWER RAPID TRAVERSE TO HEAD


Arm length 4'
Column diameter 11"
Vertical arm travel on column 26"
Vertical spindle travel in head 14"
Spindle-radius, maximum 57"
Spindle-radius, minimum 20"
Spindle-nose to base, minimum 14"
Spindle-nose to base, maximum 54"
Column-face to spindle, minimum 11"
Drills to center of circle on base 96"
Spindle taper #5 MT
(12) spindle speeds, range 40 TO 1600 RPM
(9) spindle feeds, range .002 TO .040 IPR
Main motor, horsepower 10 HP
