Giddings & Lewis 1248 2500

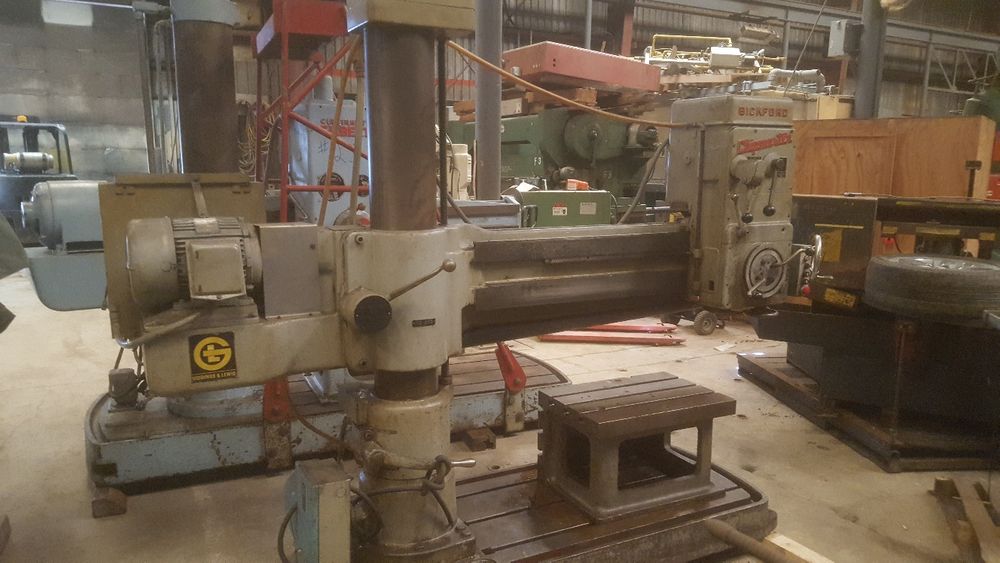

GIDDINGS & LEWIS BICKFORD CHIPMASTER

SPECIFICATIONS: COLUMN DIAMETER ---------------------------- 9 in
ARM LENGTH --------------------------------- 4 ft
BASE WORKING SURFACE ----------------------- 25 in x 50 in
CENTER OF CIRCLE --------------------------- 8 ft
MINIMUM DISTANCE FACE OF COLUMN TO SPINDLE - 9.5 in
MAX DISTANCE SPINDLE TO BASE --------------- 53 in
MIN DISTANCE SPINDLE TO BASE --------------- 15.75 in
VERTICAL TRAVEL OF ARM --------------------- 27.25 in
SPINDLE TRAVEL ----------------------------- 10 in
SPINDLE SPEEDS ----------------------------- (9) 125-2500
SPINDLE TAPER ------------------------------ #4
APPROX WEIGHT ------------------------------ 5,300 LBS
