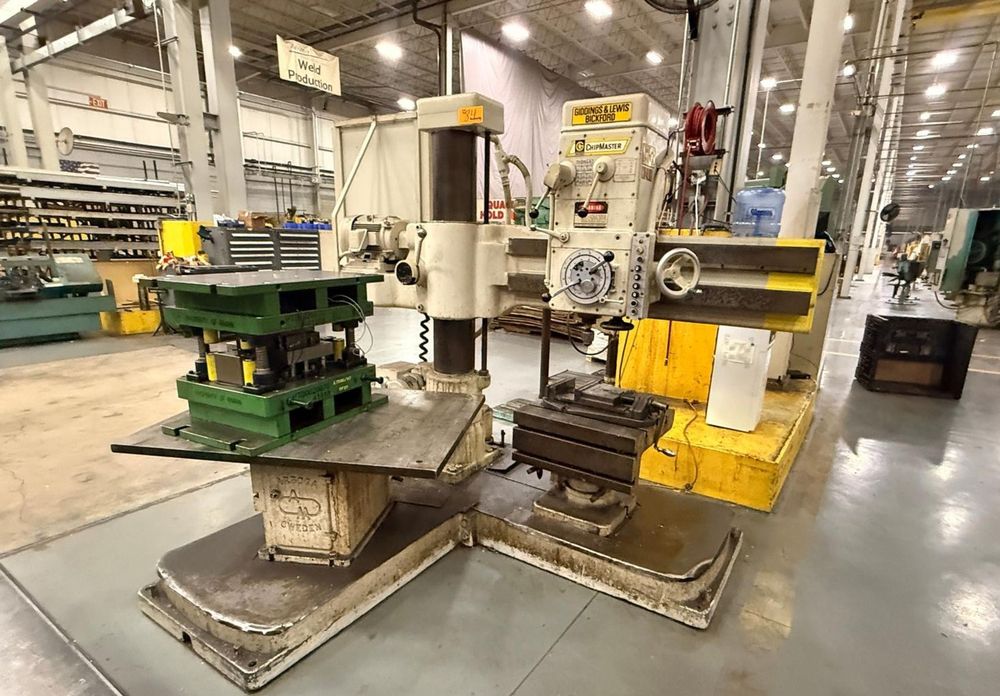

Giddings & Lewis CHIPMASTER 1,200 RPM

Maximum distance spindle to column: 55"
Column diameter: 9"
Face of column to center of spindle: 10-1/2" minimum
Vertical travel of arm on column: 28-1/4"
Distance spindle to base max/min: 53"/15"
Working surface of base: 30" x 53"
Vertical travel of spindle in head: 10"
Taper in spindle: #4 MT
Spindle feeds: 2, 4, 7, 10 IPR
Spindle speeds: 60 to 1,200 RPM
Drilling capacity: 1-1/2"
Tapping capacity: 3/4"
Boring capacity: 3-5/8"
Approximate weight: 6,000 lbs
Spindle has power feed
Tapping by switch & push button
Power elevation of arm on column
Right angle base
T-slotted bases
Universal box table
T-slotted box table made by "Arboga"
Coolant system
5 horsepower spindle motor
