Gildemeister 4290 Heidenhain 5000 min/-1 CTX 410 V3 -661 3 Axis

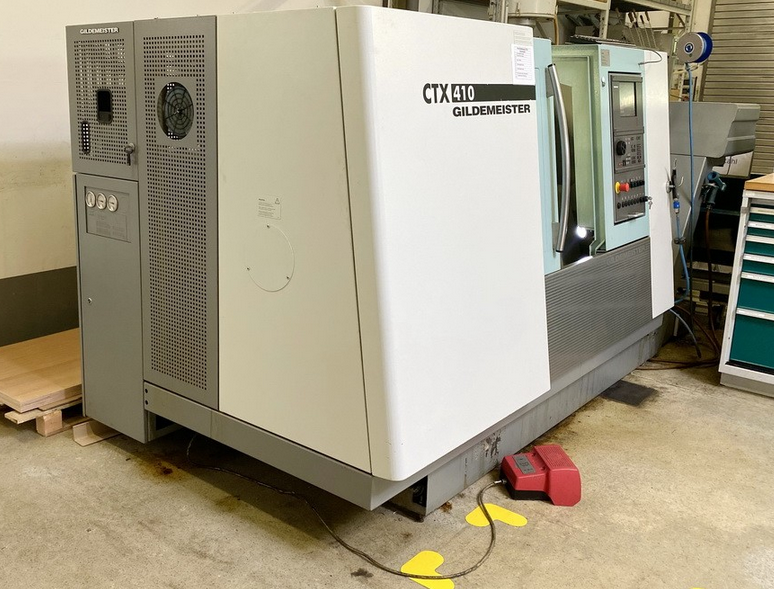

GILDEMEISTER CTX 410 V3 -661
Year 2004

Control 4290 Heidenhain
- CTX 410 V3
- incl. various jaws
- incl. workpiece clamping technology
- 3x tool holders
- only 2.089 Spindle hours


turning diameter max. 320 mm
turning length 600 mm
control 4290 Heidenhain
swing diameter above cross guideway 365 mm
Main spindle:
turning speed range - main spindle 25 - 5.000 min/-1
power capacity - main spindel 28 / 21 kW
max. Torque 23 Nm
spindle nose 170h5
chucking diameter 250 mm
spindle diameter in front bearing 130 mm
spindle bore 87 mm
max. bar capacity 65 mm
C-axis

turret:
number of toolpositions 12 pos.
tool taper VDI 30
Driven Tool Stations:
Number of driven toolspositions 12 pos.
tool spindle speed range max. 4.000 min/-1
power capacity driven tool-stations 9,6 kW
axis stroke:
x-travel 250 mm
z-travel 635 mm

Tailstock:
Tailstock
taper of center MK 4
clamping capacity 8 kN
quill stroke 150 mm

feeds:
rapid traverse X: 24 / Z: 30 m/min
feed power X: 4 / Z: 6 kN
total power requirement 44 kVA
weight of the machine ca. 4,5 t
dimensions of the machine ca. 4,5 x 2,0 x 2,0 m

Accessories
Documents
exhaust fan
Three Jaw Chuck FORKARDT - 3FNC 250
Turret 12 pos.
