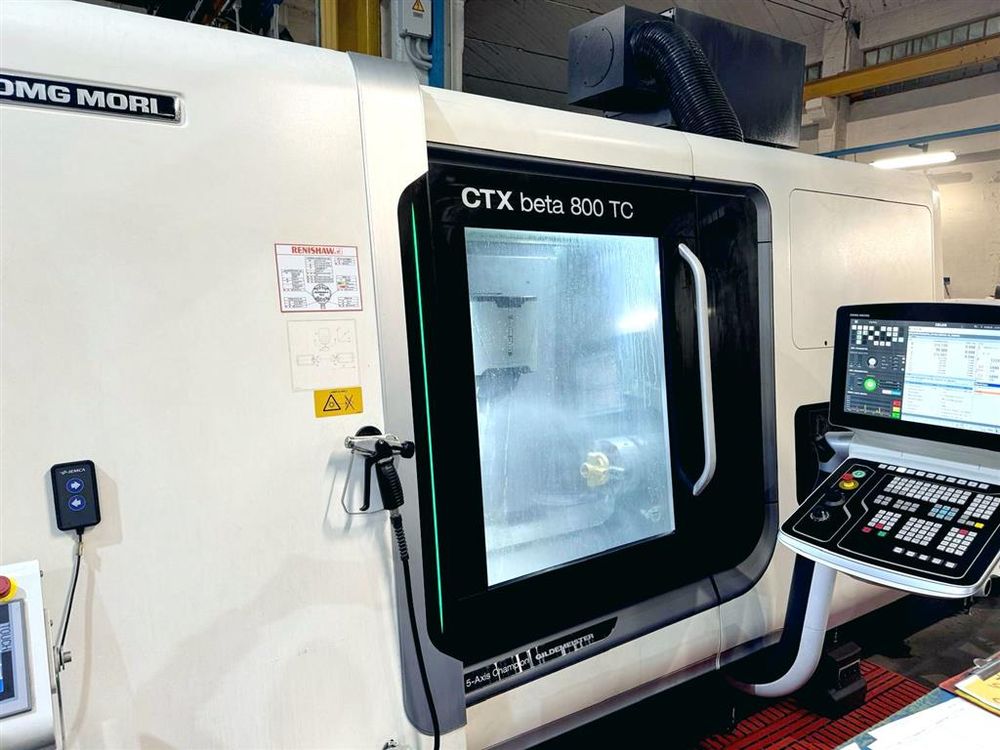

Gildemeister CELOS Siemens 840D sl Operate 5000 rpm CTX BETA 800 TC 3 Axis

Travel Y Axis: ±100 mm
B Axis: ±110°
Control: CELOS Siemens 840D sl Operate
Maximum Turning Diameter: 700/410 mm
Maximum Turning Length: 800 mm
Spindle Speed Main Spindle: 5000 rpm
Spindle Speed Sub Spindle: 6000 rpm
Main Spindle Power: 32/25 kW
Sub Spindle Power: 14.5/12.5 kW
Hollow Clamping Cylinder: 77 mm
Milling Spindle Speed: 20000 rpm
Milling Spindle Drive Power: 22.5/19 kW
Tool Magazine Capacity: 48 Positions
Tool Holder: CAPTO C6
Total Power Requirement: 74 kVA
Machine Weight: 10 t
Machine Dimensions: 6.50 x 2.68 x 2.00 m
Main Spindle ISM 76
Main Spindle C Axis
Main Spindle Brake
Sub Spindle ISM 52
Sub Spindle C Axis
Sub Spindle Brake
Tailstock Function for Sub Spindle
Partial Hollow Clamping Device for Sub Spindle D=52
Differential Pressure Clamping for Main and Sub Spindle
Renishaw RMP 40 Measuring Probe
BLUM Laser Measuring System NT-H 3D
MPC 1.0 Safety Device
Automatic Door
Bar Package
Compact Coolant Unit 8 bar
High Pressure Coolant 20-80 bar
Coolant Flow Rate 80/20 l/min
Band Filter
Coolant Cooling Unit
Coolant Supply Through Sub Spindle
Chuck Flushing Device for Main Spindle External
Chuck Flushing Device for Sub Spindle External
Flushing Gun
3-Jaw Chuck SMW Autoblok 250
3-Jaw Chuck SMW Autoblok 210
Mechanical Oil Mist Separator
Alternating Speed
DXF File Import
Net Service
IoT Connector
Service Agent
Messenger V2
CELOS PC Version 5
3D Data Model STEP Format
3D Data Model IGES Format
Bar Loader IEMCA MAESTRO 80 MP 32LL
Chip Conveyor
Power On Hours approx. 16500 h
Spindle Hours approx. 12000 h
