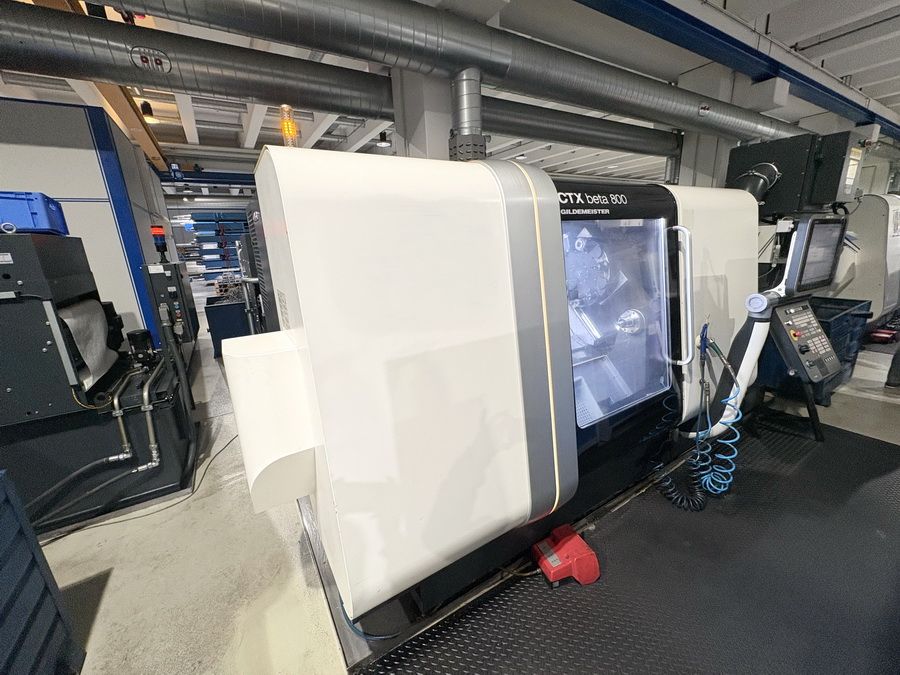

Gildemeister Sinumerik 840D ERGOLine 4,000 rpm CTX beta 800 V4 4 Axis

X Axis Travel: 300 mm
Y Axis Travel: ±60 mm
Z Axis Travel: 800 mm
Rapid Traverse (X/Y/Z): 30 m/min
C Axis: 0.01°

Control: Sinumerik 840D ERGOLine
Chip Conveyor
Coolant System
Oil Mist Extraction
Paper Band Filter 8 / 20 bar, 600 L
Tailstock
Signal Lamp (4 color)
Spray Gun

Max Turning Diameter: 410 mm
Turning Length: 800 mm
Swing Over Bed: 700 mm

Spindle Speed: 4,000 rpm
Spindle Motor Power: 25 kW
Max Torque: 280 Nm
Spindle Bearing Diameter: 130 mm

Driven Tool Speed: 4,000 rpm
Driven Tool Power: 5.6 kW

Turret: 12 stations
Driven Tool Stations: 6
Tool Taper: DIN 69880 / 40 mm
Chuck Size: 260 mm
Hollow Spindle: 95 mm

Total Power Requirement: 65 kVA
Machine Weight: 6.2 t
Machine Dimensions: 5.5 x 3.0 x 2.5 m

Workbench
Tool Cabinet
Tool Cabinet for VDI Holders
2 Powered Tools
6 Tool Holders
