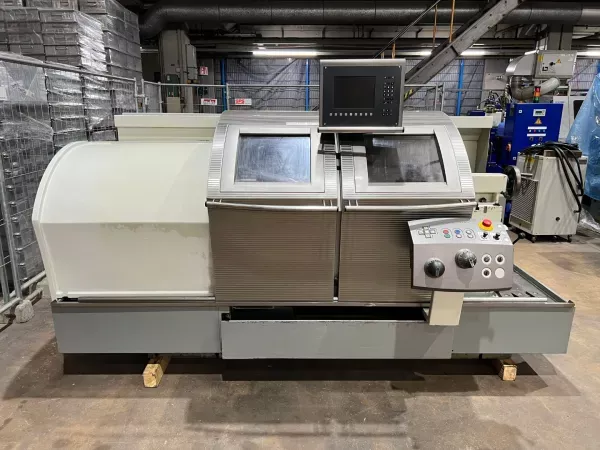

Gildemeister CNC CONTROL 3000 rpm NEF 520 CNC LATHE 2 Axis

Ref : 2748249-3-AW

Condition : Used

Manufacturer : Gildemeister

Controller : CNC CONTROL

Spindle Speed : 3000 rpm

Model : NEF 520 CNC LATHE

Nb Of Axis : 2 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Swing diameter over bed: 500 mm
Swing diameter over cross slide: 290 mm
Chuck diameter: 250 mm
Planned route: 260 mm
Tip width: 850 / 1350 mm
Spindle head DIN 55027 size: 8
Spindle bore diameter: 70 mm
Recording in spindle: meter 80
Spindle diameter in the front bearing: 120 mm
Drive power: 12 kW
Max. torque: 920
Speed range: 10–3000 rpm
Gear stages: 2
Switchable speeds: Stepless
X-feed force: 5000 N
Z-feed force: 10000 N
X-rapid traverse: 8 m/min
Z-rapid traverse: 10 m/min
Multifix tool carrier size: C
Quill diameter: 80 mm
Quill stroke: 180 mm
Quill holder: MK5
Dimensions (LxWxH): 2900 x 1953 x 1825 mm
Weight: 2700 kg

SMW Autoblok Hi-Grip high-precision chuck
Feeding jaws
Multifix steel holder
Complete operational documentation
