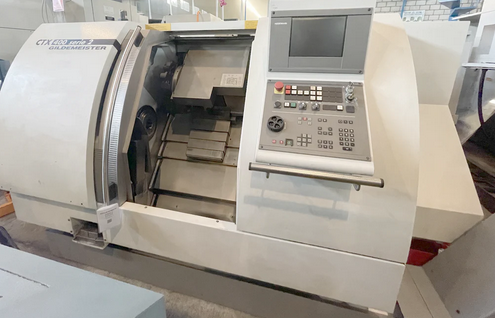

Gildemeister CNC CONTROL 5000 t/min CTX 400 2 Axis

Swing Over Bed 500 mm
Maximum Turning Length 640 mm
Turning Diameter 290 mm
Z-Axis Travel 640 mm
X-Axis Travel 212 mm
Fixed Tools Turret 12 Positions
Inner Cone Diameter 30 mm
Inner Cone DIN 69880
Spindle Hole 66 mm
Spindle Taper HAINBUCH SK65 BZI
Spindle Speeds 25-5000 t/min
Spindle Power 22 kW
Max Torque 420 Nm
Morse Taper 4 CM
Spindle Stroke 100 mm
Spindle Diameter 80 mm
Spindle Pressure 8 kN
Feeds Z-Axis Up to 8000 mm/min
Feeds X-Axis Up to 4000 mm/min
Rapid Traverse X 10 m/min
Rapid Traverse Z 15 m/min
Voltage 3x400 V 50 Hz
Total Power 50 kVA
Spindle Motor 22 kW
Machine Weight 5100 kg
Overall Dimensions Length 3400 mm
Overall Dimensions Width 1940 mm
Overall Dimensions Height 1700 mm
Lamp
Coolant System
Bar Feeder LNS Quick Load Servo 2
Chip Conveyor
Set of Toolholders
