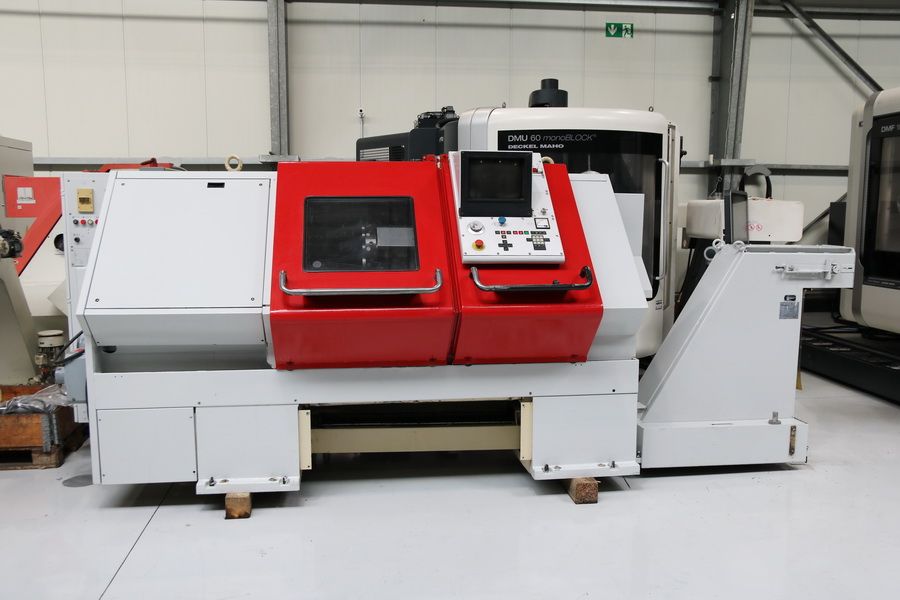

Gildemeister EPL 2 4000 rpm NEF CT 40 3 Axis

Ref : 2770423-3-GO

Condition : Used

Manufacturer : Gildemeister

Controller : EPL 2

Spindle Speed : 4000 rpm

Model : NEF CT 40

Nb Of Axis : 3 Axis

Year(s) : 1987

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 260 mm
Z-axis travel: 1040 mm
Rapid traverse X/Z: 10 m/min
C axis: not specified
Control: EPL 2
CNC control
Turning diameter: 400 mm
Turning length: 1000 mm
Swing over bed: 400 mm
Swing over cross slide: 225 mm
Spindle speed range: 20–4000 rpm
Spindle motor power: 11 kW
Spindle torque: 75 Nm
Spindle bore: 72 mm
Spindle nose: 140H5
Chuck diameter: 185 mm
Spindle front bearing diameter: 100 mm
Number of tool positions: 12
Quill diameter: 80 mm
Quill stroke: 100 mm
Tailstock taper: MK 4
Tailstock pressure: 800 daN
Feed speed Z: 5 m/min
Feed force Z: 800 daN
Total power requirement: 29 kW
Machine dimensions: 4.6 x 2.1 x 2.0 m
Machine weight: 4.0 t
Chip conveyor
Three-jaw chuck
Documents
