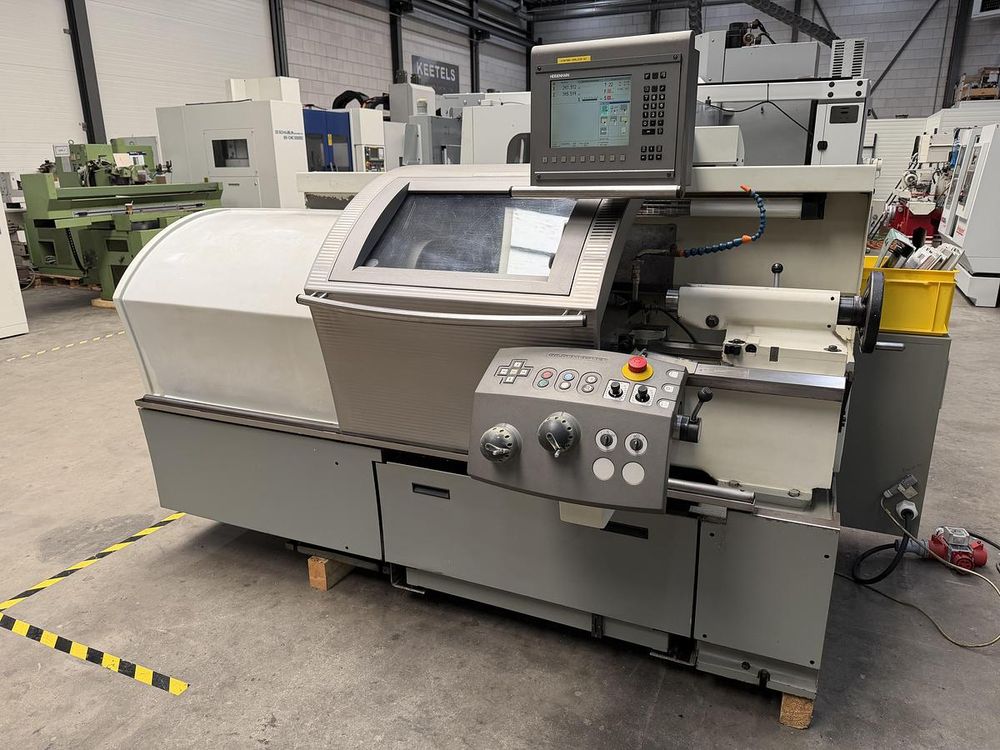

Gildemeister Heidenhain Control 4000 RPM NEF 320 2 Axis

Ref : 2795259-3-MT

Condition : Used

Manufacturer : Gildemeister

Controller : Heidenhain Control

Spindle Speed : 4000 RPM

Model : NEF 320

Nb Of Axis : 2 Axis

Year(s) : 2001

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 185 mm
Z-Axis Travel: 700 mm
Rapid Traverse X-Axis: 8 m/min
Rapid Traverse Z-Axis: 10 m/min
Heidenhain Control
Swing Over Bed: 320 mm
Swing Over Slide: 150 mm
Maximum Turning Diameter: 320 mm
Maximum Turning Length: 750 mm
Spindle Speed: 10-4000 RPM
Spindle Bore: 50.8 mm
Spindle Motor Power: 9 kW
Spindle Nose: DIN 55027 Size 6
Chuck Size: 200 mm
Bison 3-Jaw Chuck Ø200 mm
Multifix Type B Turret
Turret Positions: 1
Tailstock Taper: MK5
Drill Chuck
MK Reduction Sleeves
Original Documentation
Machine Weight: 2000 kg
Machine Dimensions: 2450 x 1668 x 1825 mm
