Gildemeister Plus IT Heidenhain 5000 RPM CTX 410 V1 2 Axis

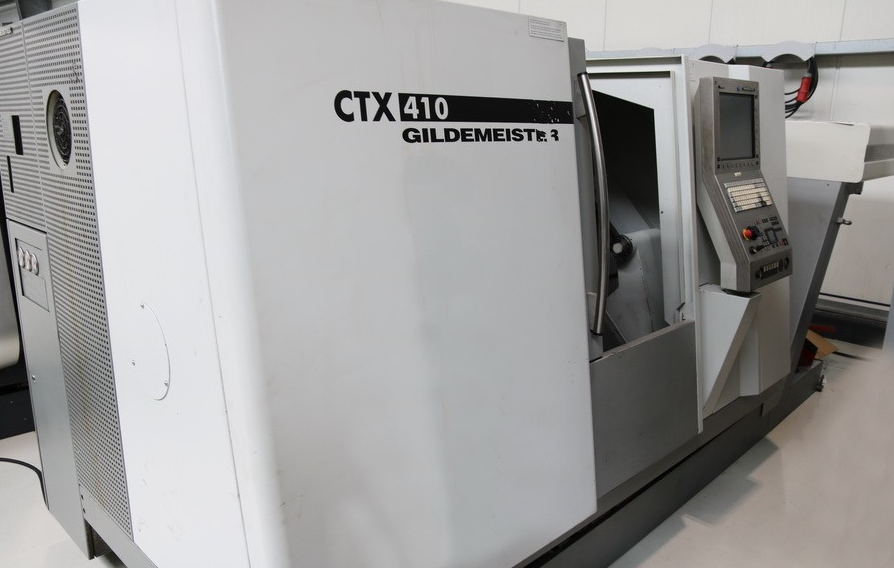

GILDEMEISTER CTX 410 V1
Year: 2007

Machine Type: CNC Lathe
Control: Plus IT Heidenhain
Turning Diameter: 320 mm
Turning Length: 600 mm
Swing Diameter: 505 mm
Spindle Speed Range: up to 5000 RPM
Spindle Power: 21 kW
Maximum Torque: 240 Nm
Spindle Head: 170h5
Spindle Diameter (Front Bearing): 130 mm
Spindle Bore: 87 mm
Chucking Diameter: 250 mm
X Axis Travel: 250 mm
Z Axis Travel: 635 mm
Tool Positions: 12
Tool Shank Diameter: VDI 30 DIN 69880
Maximum Pitch Circle: 340 mm
Feed Force X: 4 kN
Feed Force Z: 6 kN
Rapid Traverse X: 24 m/min
Rapid Traverse Z: 30 m/min
Total Power Requirement: 44 kW
Machine Weight: 6.0 t
Machine Dimensions: 4.8 x 2.5 x 2.0 m
Spindle Hours: approx. 7070
Power-On Hours: approx. 12,557

Chip Conveyor
Coolant System
Documentation
Tailstock
Three-Jaw Chuck
Tool Setter
Maintenance Kit DMG
