Gildemeister Plus iT Heidenhain 5000 RPM CTX 410 V3 2 Axis

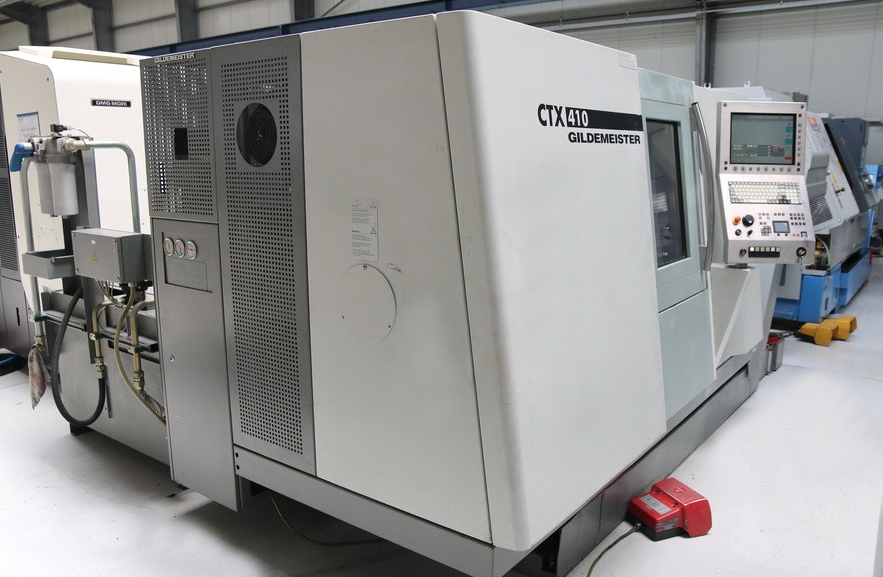

GILDEMEISTER CTX 410 V3
Year: 2005

Machine Type: CNC Turning and Milling Center
Control: Plus iT Heidenhain
Turning Diameter: 320 mm
Turning Length: 600 mm
Swing Diameter Above Cross Guideway: 365 mm
Spindle Speed Range: 25 - 5000 RPM
Spindle Power: 28 / 21 kW
Maximum Torque: 10 Nm
Spindle Nose: 170h5
Chucking Diameter: 215 mm
Spindle Diameter (Front Bearing): 130 mm
Maximum Bar Capacity: 65 mm
X Axis Travel: 250 mm
Z Axis Travel: 635 mm
C Axis
Tool Positions: 12
Tool Taper: VDI 30
Driven Tool Positions: 12
Driven Tool Speed Range: up to 4500 RPM
Driven Tool Power: 3.1 kW

Tailstock
Tailstock Center Taper: MK 4
Tailstock Quill Diameter: 120 mm
Tailstock Quill Stroke: 150 mm

Rapid Traverse X: 24 m/min
Rapid Traverse Z: 30 m/min
Total Power Requirement: 44 kW
Machine Weight: 5.6 t
Machine Dimensions: 4.8 x 3.7 x 2.0 m
Spindle Hours: approx. 9705
Control Extension: Turn Plus
Coolant Tank: 500 L

Chip Conveyor
High Pressure Coolant 20 bar
Three-Jaw Chuck
12-Position Turret
