Gildemeister Siemens 840 D powerline 7200 rpm TWIN 32 2 Axis

Turning diameter: 100 mm
Turning length: 320 / 345 mm
Swing diameter: 145 mm
Spindle distance: 580 mm
Slide I cross travel (X1): 220 mm
Slide I longitudinal travel (Z1): 320 mm
Slide II cross travel (X2): 120 mm
Slide II longitudinal travel (Z2): 345 mm
Y-axis travel: ±30 mm
Rapid traverse (X/Y/Z): 30/15/30 m/min
Rapid traverse (X/Z) slide II: 30 m/min
Subspindle travel (Z3): 380 mm
Subspindle vertical stroke (X3): 145 mm
Maximum bar diameter: 36 mm
Rapid traverse (X/Z) subspindle: 20/30 m/min
Spindle turning speed range: 40–7200 rpm
Power capacity (40/100 % ED): 26/21 kW
Total power requirement: 42 kVA
Weight: 5.3 t
CNC control: Siemens 840 D powerline
Number of controlled axes: 9
C-axis: 2
Upper turret with Y-axis
Pick-up device with gripper
2 SAUTER turrets with 12 tool positions (driven), VDI 25
Tool drive speed range: 30–6000 rpm
Coolant system with paper band filter
Chip conveyor
Collet chuck on main and subspindle

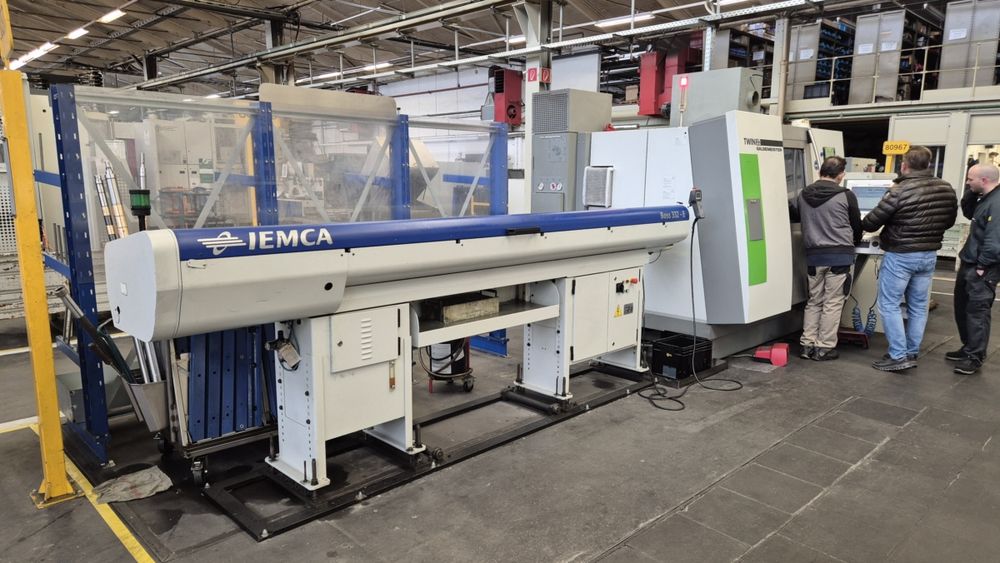

Bar loading magazine: IEMCA BOSS 332 E 32 L, max. bar length 3180 mm

Condition:
Repairs and maintenance performed
including main spindle S4
and ball-screws replacements
