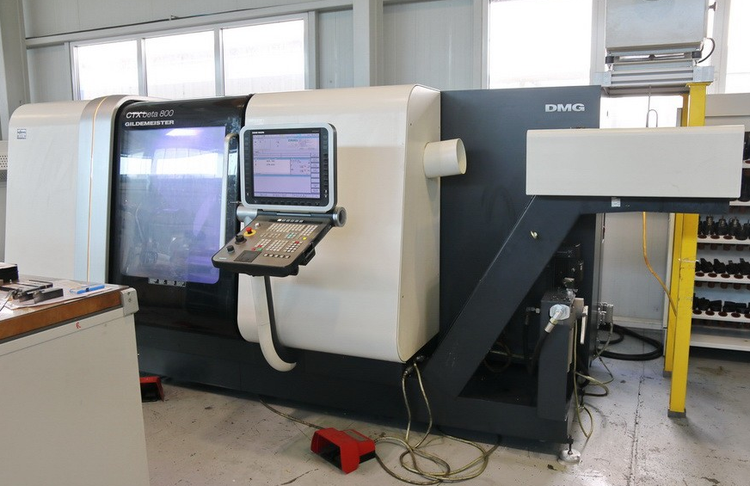

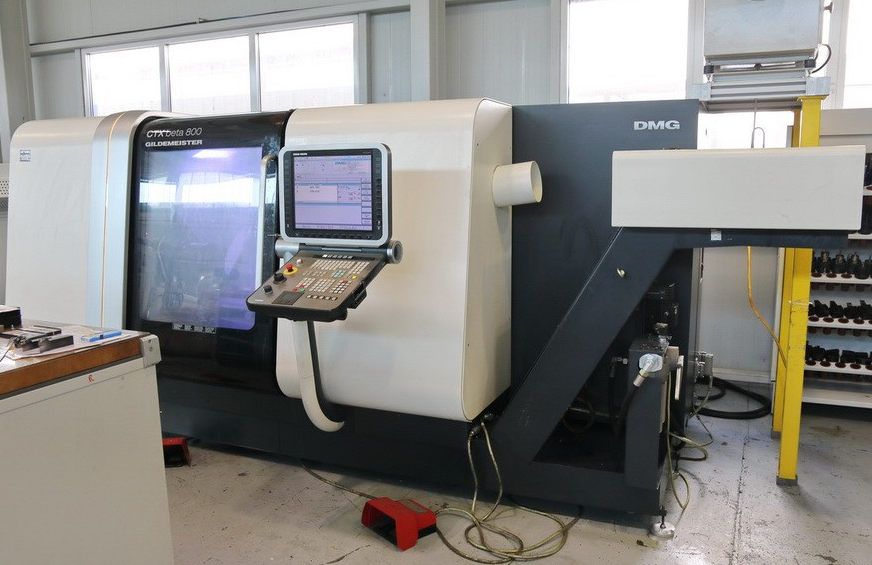

Gildemeister Siemens 840 D sl ShopTurn 5000 rpm CTX beta 800 V3 2 Axis

Turning diameter: 410 mm
Turning length: 800 mm
Greatest pass round over bed: 700 mm
Swing diameter over bed slide: 380 mm
Maximum turning diameter: 410 mm
Center distance: 975 mm
Travel X-axis: 300 mm
Travel Z-axis: 850 mm
Control: Siemens 840 D sl ShopTurn
Spindle type: ISM 76
Spindle speed range: 25–5000 rpm
Chuck diameter: 255 mm
Inner draw tube diameter: 67 mm
Spindle power: 25 kW
Maximum torque: 280 Nm
C-axis: Yes
Turret stations: 12
Tool taper: VDI 40 DIN 69880
Driven stations: 12
Driven tool power: 11.3 kW
Driven tool torque: 28 Nm (40%)
Switching time (30°): 0.4 sec
Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 30 m/min
Tailstock adjustment: 800 mm
Morse taper: MK 5
Total power requirement: 65 kW
Machine weight: 6.2 t
Machine dimensions: 5.5 × 3.0 × 2.5 m
Spindle hours: approx. 3,667 h

Features/Equipment
Chip conveyor
Coolant system (12 bar)
Direct probing
Exhaust fan
Hydraulic partial hollow chuck (67 mm)
Signal light
Tailstock
Renishaw RP3 tool setter
