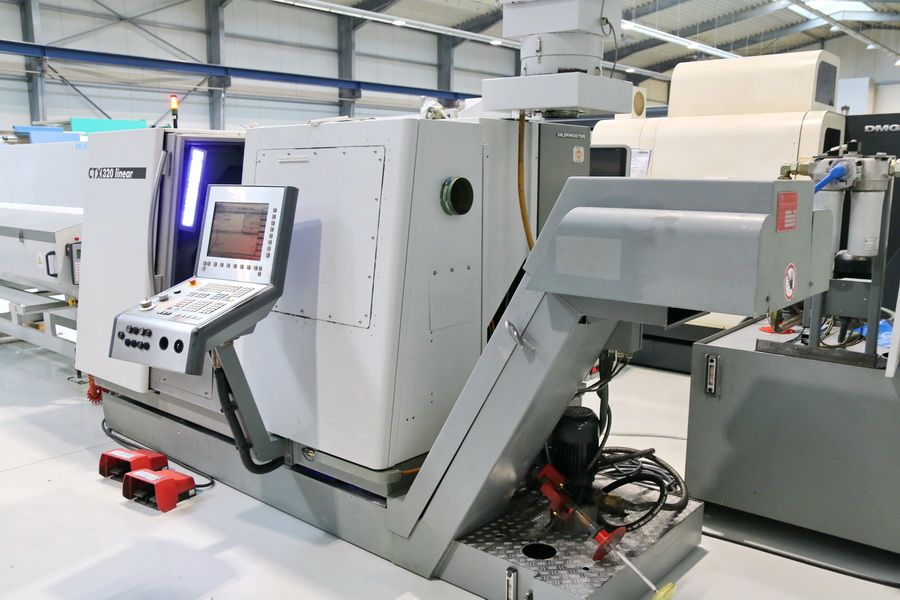

Gildemeister Siemens 840D 6000 rpm CTX 320 LINEAR 4 Axis

X-Axis Travel: 160 mm
Y-Axis Travel: ±32 mm
Z-Axis Travel: 450 mm
C-Axis
Control: Siemens 840D
Turning Diameter: max. 400 mm
Turning Length: 600 mm
Swing Over Bed: 500 mm
Swing Over Cross Slide: 300 mm
Center Distance: 615 mm
Main Spindle Speed: 20 – 6000 rpm
Main Spindle Power: 16 kW
Max Torque: 155 Nm
Spindle Nose: 140H5
Chuck Diameter: 165 mm
Sub Spindle Speed: 20 – 6000 rpm
Sub Spindle Power: 7.5 kW
Spindle Diameter Front Bearing: 75 mm
Spindle Bore: 37 mm
Driven Tool Speed: max. 5000 rpm
Driven Tool Power: 3.7 kW
Rapid Traverse C-Axis: 200 1/min
Feed Force Z-Axis: 4 kN
Turret: 12 positions
Driven Tool Positions: 12
Tool Taper: VDI 30
Tool Size: 20 × 20 mm
Three Jaw Chuck: SMW 210 mm
Collet Chuck: 165 mm
Bar Feeder: Breuning IRCO Profimat
Bar Feeder Interface
Coolant System: 12 bar
Chip Conveyor
Parts Catcher
Hydraulic System
Tool Drive Mechanism
Documents
Total Power Requirement: 34 kVA
Machine Weight: approx. 4.5 t
Machine Dimensions: 8.0 × 3.0 × 2.7 m
