Gildemeister Siemens 840D powerline 5000 rpm CTX 420 linear V6 3 Axis

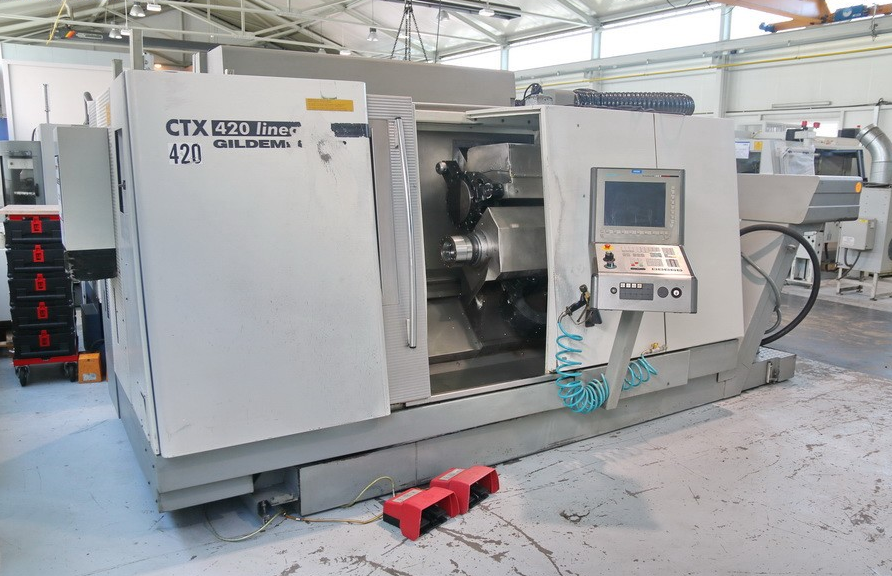

GILDEMEISTER CTX 420 linear V6
Year: 2004

General:
Max. Turning Diameter: 560 mm
Turning Length: 600 mm
Max. Pass Round Over Bed: 680 mm
Swing Diameter Over Traverse Guideway: 565 mm
Center Distance: 620 mm
Control: Siemens 840D powerline
Weight: approx. 7,000 kg
Dimensions (L×W×H): approx. 6.0 × 3.0 × 2.5 m

Main Spindle:
Speed Range: 20 – 5,000 rpm
Power: 25 / 37 kW
Max. Torque: 213 Nm
Spindle Nose: 140H5
Spindle Bearing Diameter: 90 mm
Usable Bar Diameter: 65 mm
Max. Chucking Diameter: 250 mm
C-Axis: Available

Sub Spindle:
Speed Range: 20 – 7,000 rpm
Power: 25 / 33 kW
Spindle Bore: 57 mm

Turret:
Tool Positions: 12
Driven Tool Positions: 12
Driven Tool Speed: max. 4,500 rpm
Driven Tool Power: 12.2 kW
Tool Taper: VDI 40 DIN 69880
Tool Dimensions with Square Shank: 40 mm

Axis Stroke:
X-Axis: 185 mm
Z-Axis: 620 mm
Y-Axis: Available

Feeds:
Rapid Traverse (Z): 45 m/min
Power Requirement: 50 kVA

Accessories:
Main and Sub Spindle
Tool Drive Mechanism
C Axis / Y Axis
Hollow Clamping Device (66 mm)
Workpiece Picking Device
ShopTurn Interface
Chip Conveyor
Coolant System: 980 L, 8 and 20 bar
Oil Mist Extraction: Preparation available
2x Driven Tools
4x Double Tool Holders
4x Tool Holders
83x Tools
