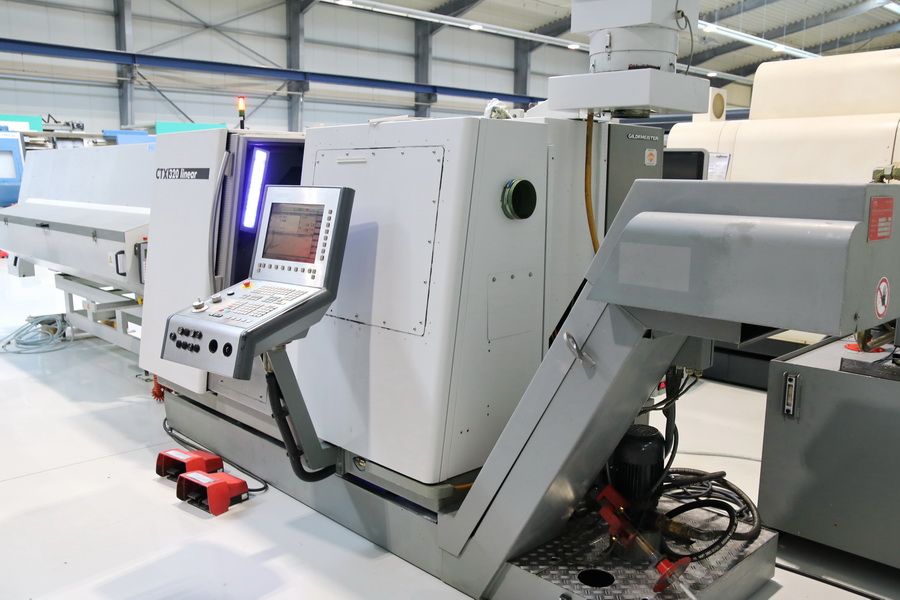

Gildemeister Siemens 840D Powerline 6000 rpm CTX 320 LINEAR V5 4 Axis

X Axis Travel: 160 mm
Y Axis Travel: ±32 mm
Z Axis Travel: 450 mm
C Axis
Control: Siemens 840D Powerline
ShopTurn
Turning Diameter: 246 mm
Turning Length: 600 mm
Swing Over Bed: 400 mm
Swing Over Cross Slide: 300 mm
Center Distance: 600 mm
Bar Capacity: 52 mm
Main Spindle Speed: 6000 rpm
Main Spindle Motor Power: 16 kW
Main Spindle Torque: 155 Nm
Spindle Nose: 140H5
Chuck Diameter: 165 mm
Sub Spindle Speed: 4000 rpm
Sub Spindle Motor Power: 7.5 kW
Sub Spindle Bore: 37 mm
Driven Tools Speed: 5000 rpm
Driven Tools Motor Power: 3.7 kW
Rapid Traverse C Axis: 200 rpm
Tool Positions: 12
Driven Tool Positions: 12
Tool Holder: VDI 30
Tool Size: 20 x 20 mm
Feed Force Z Axis: 4 kN
Total Power Requirement: 32 kVA
Machine Weight: 3.8 t
Machine Dimensions: 8000 x 3000 x 2700 mm
Main Spindle
Sub Spindle
Tool Drive
IRCO Profimat 50.8 196.8 BREUNING Bar Feeder
Bar Feeder Interface
Chip Conveyor
Collet Chuck Spanntop SP.0618.0133.00 HAINBUCH
Coolant System
High Pressure Coolant 20 bar
Hydraulic System
Oil Mist Extraction Filtermist F7 HASCON
Parts Catcher
Spindle Reduction Tubes 7 pcs
Three Jaw Chuck SMW 210 mm
Triple Signal Light
Documents
