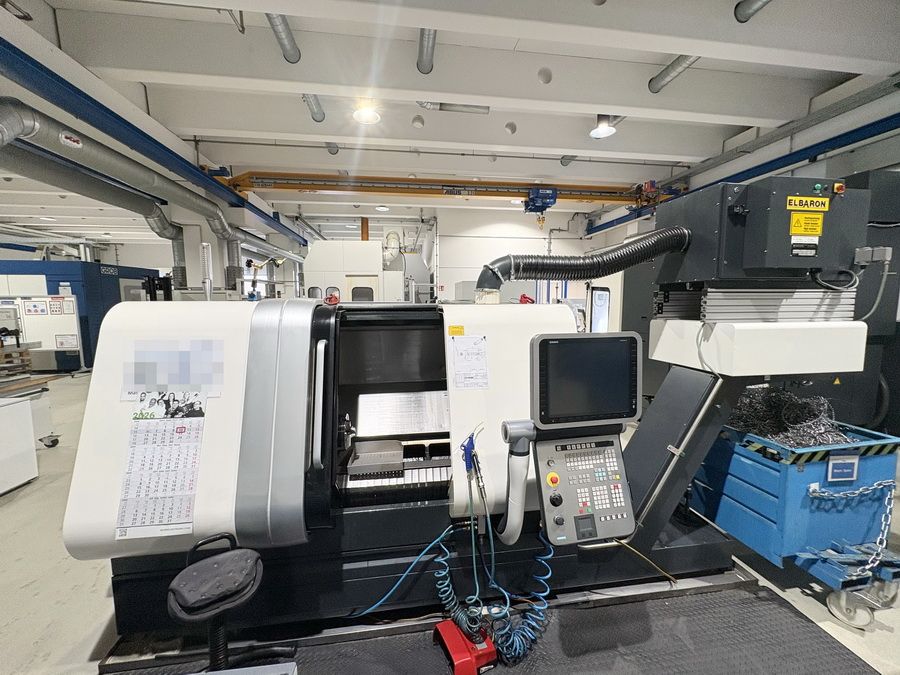

Gildemeister Siemens 840D SL ShopTurn 4,500 rpm NEF 400 V3 Gen 5 3 Axis

X-axis travel: 255 mm
Z-axis travel: 800 mm
Rapid traverse (X/Z): 30 / 30 m/min
Feed speed: 0–30,000 mm/min
C-axis: available

Control: Siemens 840D SL ShopTurn
CNC universal lathe
Tool drive
Chip conveyor
Coolant system
High-pressure coolant: 12 bar, 23 l/min
Hydraulic system
Signal lamp (4-color)
Exhaust fan system

Turning diameter: 350 mm
Turning length: 650 mm
Swing over bed: 385 mm
Swing over cross slide: 350 mm
Max chucking diameter: 250 mm
Bar capacity: 65 mm

Main spindle speed: 0–4,500 rpm
Main spindle power: 11.5 / 8 kW
Max torque: 340 Nm
Spindle bore: 87 mm
Spindle front bearing diameter: 130 mm
Spindle head: 170 h5

Driven tool spindle speed: up to 4,500 rpm
Driven tool power: 5.5 kW

Tool positions: 12
Tool shank: DIN 69880, 30 mm
Driven tool stations: 6 positions

X-axis feed force: 4.5 kN
Z-axis feed force: 6.2 kN

Tailstock taper: MK4
Tailstock clamping force: 6.8 kN

Three-jaw chuck: Schunk ROTA 215-62
Hydraulic hollow chuck unit: 67 mm

Machine weight: 3.3 t
Machine dimensions: 5.0 x 2.5 x 2.3 m

Workbench included
Tool cabinet included
VDI tool holder cabinet included
Tool holders included
Driven tools included (radial and axial)
