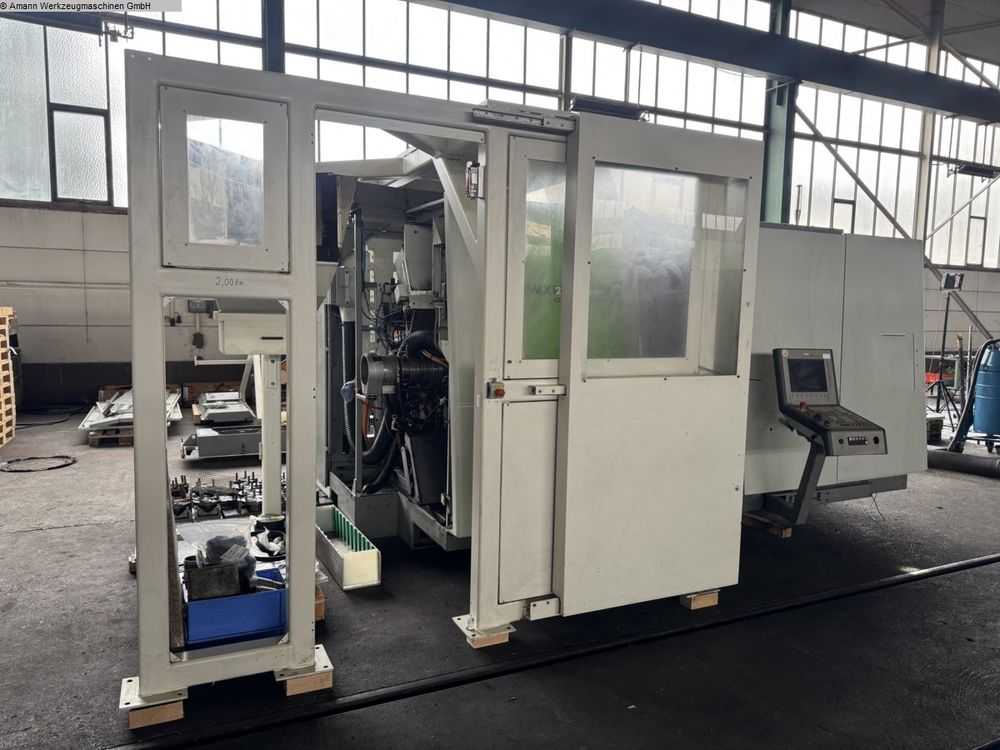

Gildemeister Siemens Sinumerik 840D 12000 rpm GMX 250 linear 6 Axis

X-axis travel: 550 mm
Y-axis travel: 180 mm
Z1-axis travel: 1185 mm
Z2-axis travel: 1050 mm
Z3-axis travel: 1150 mm
B-axis: 240°

Control: Siemens Sinumerik 840D
Turning diameter: 640 mm
Turning length: 1185 mm
Swing diameter: 640 mm
Distance between spindle heads: 1500 mm
Feed X-axis: 0–40000 mm/min
Feed Y-axis: 1–24000 mm/min
Feed Z-axis: 1–70000 mm/min
Rapid traverse X/Y/Z: 40/24/70 m/min
Feed force X/Y/Z: S6 7.00/11.00/7.50 kN
Tool taper: HSK 63
Milling spindle speed: 10–12000 rpm
Milling spindle power at 100% load: 13.2 kW
Milling spindle power at 40% load: 22.0 kW
Milling spindle torque: 60/100 Nm
Tool magazine capacity: 46 tools
Max tool length: 350/200 mm
Max tool diameter: 80 mm
Tool diameter with 2 empty positions: 120 mm
Max tool weight: 6/10 kg
Slide II X2-axis travel: 180 mm
Slide II Z2-axis travel: 1050 mm
Feed X2-axis: 1–24000 mm/min
Feed Z2-axis: 1–36000 mm/min
Rapid traverse X2/Z2: 24/36 m/min
Feed force X2/Z2: S6 11.00/9.00 kN
Turret stations: 12
Tool taper (turret): DIN 69880 Ø40
Driven tools: 12
Driven tool speed: 1–4000 rpm
Driven tool power at 100% load: 10.7 kW
Driven tool torque: S1 32 Nm
Main spindle type: ISM90
Main spindle speed: 10–4000 rpm
Main spindle power at 100% load: 36.0 kW
Main spindle power at 40% load: 45.0 kW
Main spindle torque (40%/100% load): 800/630 Nm
Main spindle bore: 80 mm
Counter spindle speed: 10–5000 rpm
Counter spindle power at 100% load: 21.0 kW
Counter spindle power at 40% load: 28.0 kW
Counter spindle torque (40%/100% load): 320/240 Nm
Counter spindle bore: 80 mm
Total power requirement: 70.0 kW
Machine weight: 20.0 t
Machine dimensions: 8.50 × 4.50 × 3.10 m

Main spindle with hollow clamping device and C-axis
Counter spindle with closed center clamping device and C-axis
Two 3-jaw hydraulic chucks SMW-AUTOBLOK KNCS-NB-315-91
Pick-up device with integrated conveyor belt
Automatic protective cover
Differential pressure clamps
Pump frame for coolant
Pump 1: 17 l/min at 80 bar
Pump 2: 20 l/min at 8 bar
Pump 3: 40 l/min at 20 bar
Chip conveyor
Dust extractor
DMG automation WH10top
Hainbuch collet chuck with collets Ø30,45,50,55,60,65,72,82,85,90
Workpiece pick-up gripper for turret
