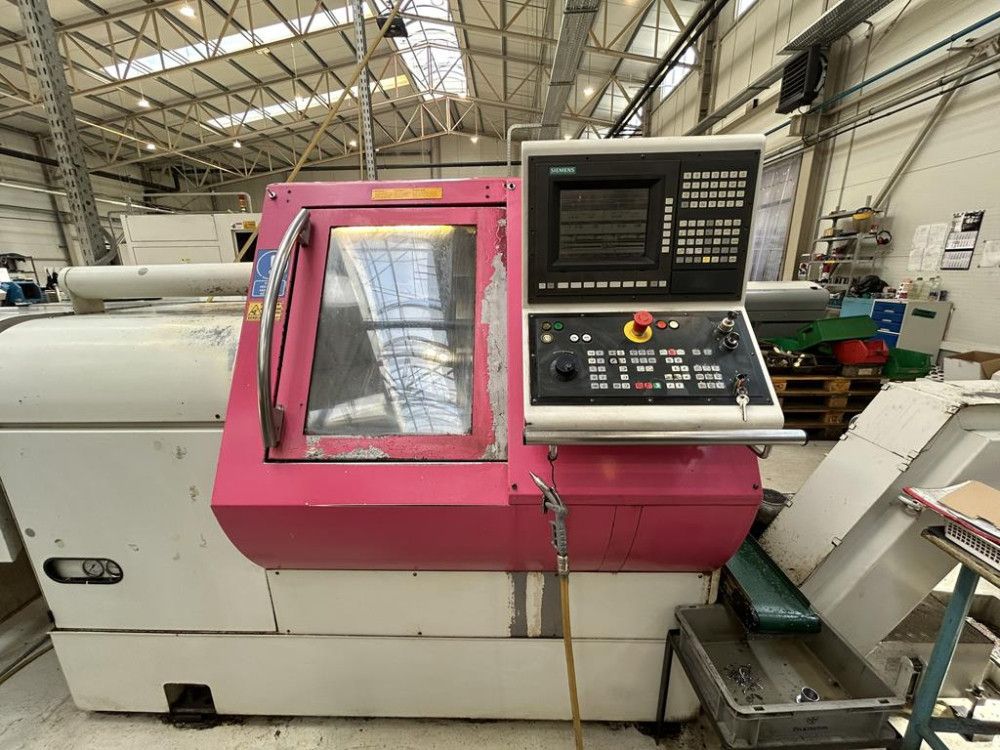

Gildemeister Sinumerik 840C 4500 RPM MF Sprint 65 2 Axis

- system Sinumerik 840C
- bar feeder SIMAG 65.1- 3200G, yom 1998
- length of bar 3200 mm
- bar diameter / spindle bore: 65 mm
- fully running
- hours 97500+
- turning diameter 65 mm
- spindle hole 79 mm
- spindle 25-4500 RPM
- 5 years ago X1 and Z1 lindear way changed incl. bearings and belts
- new HMI interface
- drive power: 28 / 21 kW
- speed ​​range: 25 – 4,500 rpm
- torque: 320 / 240 Nm
- feed speed for thread cutting: max. 10 m/min
- c-axis speed: 120 rpm
- c-axis torque (holding torque): 180 Nm
- number of tool positions: 8
- shaft diameter according to DIN 69880: 30 mm
- number of driven tool stations: 4
- power: 7.6 / 4.6 kW
- torque: 24 / 14.7 Nm
- tool holder 1 speed: max. 4,000 rpm
- tool holder 2 speed: max. 4,000 rpm
1st slide
- transverse / longitudinal travel: 155 / 280 mm
- rapid traverse speed X/Z: 22.5 / 22.5 m/min
- feed force X/Z: 900 / 900 daN
2nd slide
- transverse / longitudinal travel: 82 / 120 mm
- rapid traverse speed X/Z: 22.5 / 22.5 m/min
- feed force X/Z: 900 / 900 daN
- dimensions with bar feeder and chip container (LxWxH): approx. 6 × 2 × 2 m
- weight: approx. 6.5 t
- operating voltage: 50 Hz, 400 V
Equipment
- cooling system
- shavings discharger
- documentation
