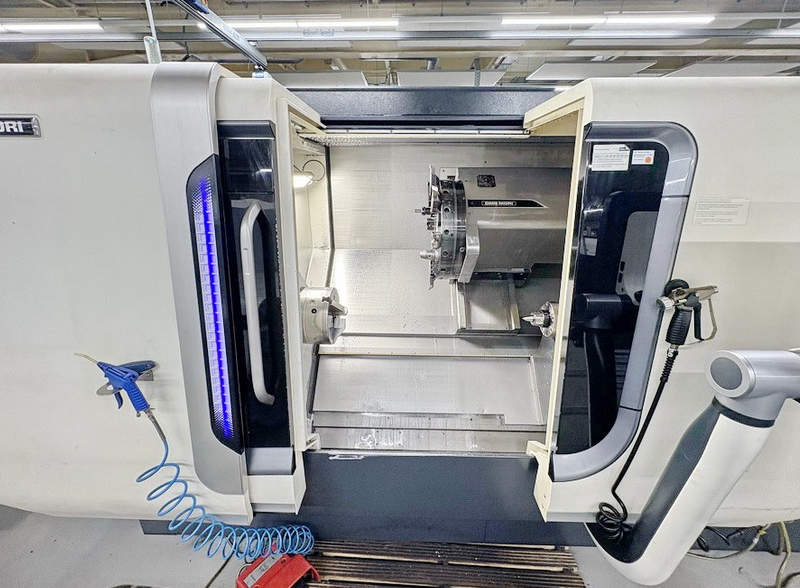

Gildemeister Sinumerik 840D sl Siemens 5,000 rpm CTX beta 800 2 Axis

Travel X-axis: 300 mm
Travel Z-axis: 850 mm
Turning diameter: 410 mm
Turning length: 800 mm
Greatest pass over bed: 700 mm
Centre distance: 975 mm
C-Axis: 0.01°
Control: Sinumerik 840D sl Siemens
Spindle speed range: 25 - 5,000 rpm
Spindle power 100% ED: 25 kW
Max torque: 380 / 280 Nm
Chuck: 260-81 mm
Bar material diameter: 65 mm
Spindle bearing diameter: 130 mm
Turret X-stations: 16
Tool taper: VDI 30 DIN 69880
Driven tools positions: 16
Spindle speed driven tools: ~4,000 rpm
Power capacity driven tools 100% ED: 5.6 kW
Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 30 m/min
Tailstock adjustment: 800 mm
Tailstock morse taper: MK 5
Total power requirement: 65 kVA
Machine weight: 6.2 t
Machine dimensions: 5.5 x 3.0 x 2.5 m
Automatic front door
Chip conveyor
Coolant system
Paper band filter
Partial hollow chuck unit 67 mm
Signal light
Tailstock
Tool drive mechanism
