Gillardon R 20 4500 rpm
Ref :
2391642-3-GO
Condition :
Used
Manufacturer :
Gillardon
Model :
R 20
Spindle Speed :
4500 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

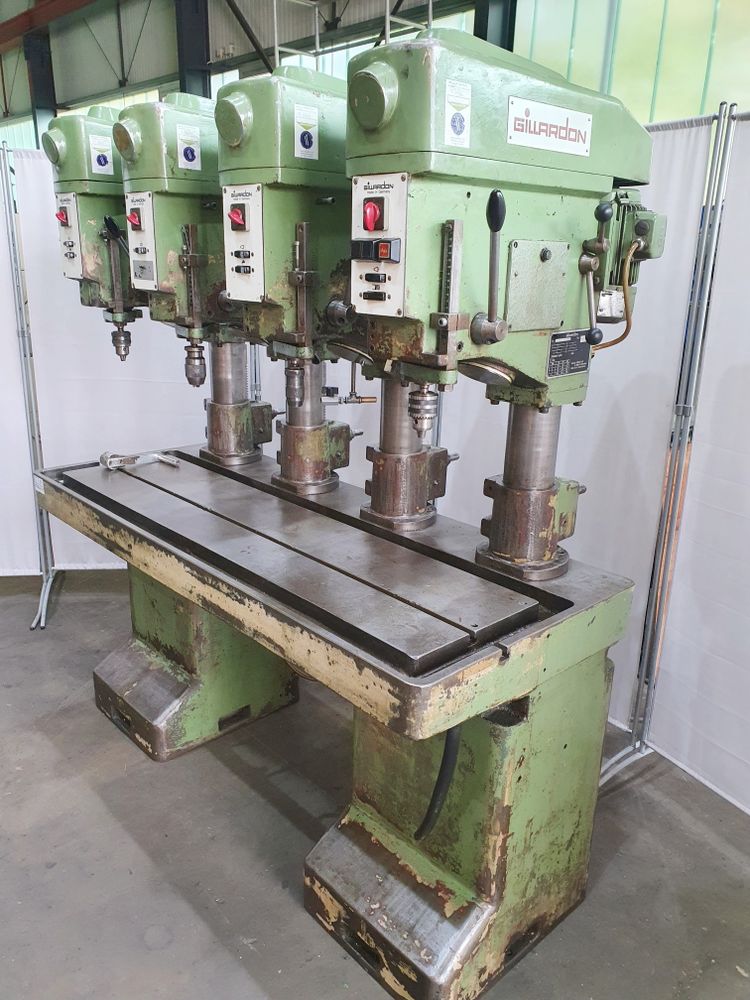

Line drilling machine GILLARDON
with 4 drilling heads type R 20
Technical specifications:
Drilling capacity GG: 25 mm
Spindle mount: MK 2
Quill stroke: 150 mm
Projection: 285 mm
Column diameter: 105 mm
Motor power per drill head: 0.5 / 0.9 kW
Work table size approx .: 1600 x 400 mm
15 spindle speeds: 200 - 4500 rpm.
Overall external dimensions L x W x H: 1600 x 800 x 1800 mm
Weight approx: 1700 kg
With
- 1 drilling head with right-left rotation
- 4 x drill chucks
- each drill head individually adjustable in height
and can be swiveled around the column
- separate coolant device
used in good condition
