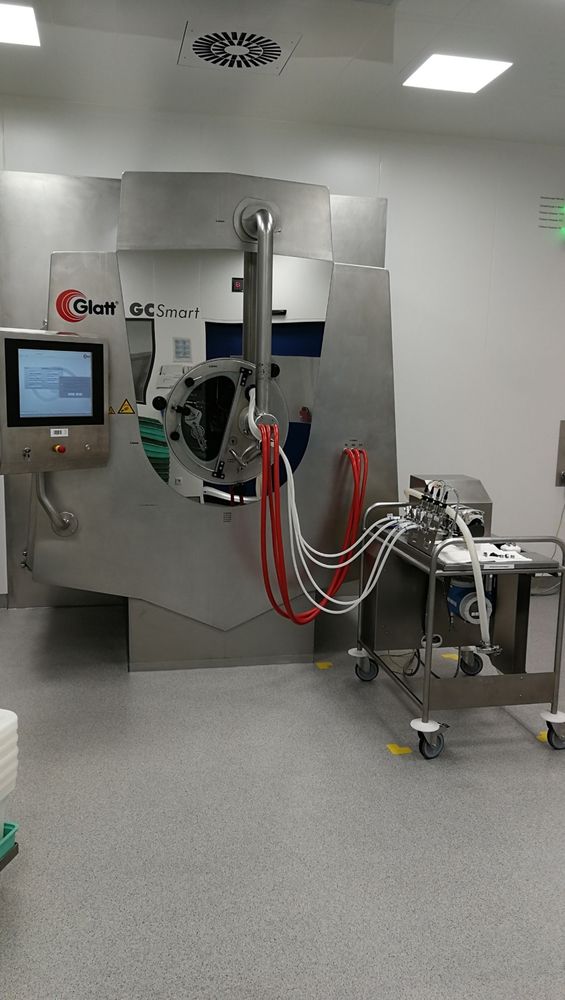

Glatt GC Smart 350 Drum coater

For coating and coating tablets using the film coating process
Drum fully perforated with mixing paddles Smooth SU 4.12, hole diam. 3 mm
Drum material AISI 316L
Drum usable volume 331 litres, drum Ø 1. 450 mm, opening diam. 550 mm
Batch size 79-265 kg (filling volume 30-100%, density 0.8 kg/dm3)
Spray nozzle Glatt GCSD 3.1 with multi-head peristaltic spray pump with pump trolley
Filling chute
SmartScoop discharge with discharge hopper
Supply air system Glatt M6/F9 with temperature and volume flow measurement
Supply air fan
Supply air filter 3. H13
measuring device for DEHS filter test
Frost protection heating (steam)
Dehumidification 32°C/40% rH, independently controlled
Humidification with preheater
Electric pure steam generator Defensor Mk5
Bypass shut-off damper during sugar coating
Exhaust air system with temperature measurement
Exhaust air dust extraction system 1-stage active, GCS design, Automatic blow-out system for cleaning the filter stage (pre-coating)
Exhaust air filter 1-stage static, H13/H14
Measuring device for DEHS filter test
Drying bypass to prevent sticking
Sound insulation
Cleaning station CVSI 06 for WIP cycle
Cleaning nozzles drum outside + inside
Machine control Siemens S7-300 CPU317-2
GlattView MEGA Process control via Beckhoff IPC with RAID 1 function, 21 CFR Part 11 compliant (as of 2014)
HMI
Languages User interface German/English
Operating system Microsoft Windows 7
GlattView data integration for batch report, process data, recipe parameters, data upload SCADA, data download MES
Remote maintenance access via VPN
GlattView control panel with 19" monitor
Drive 400/230/24V/50Hz
