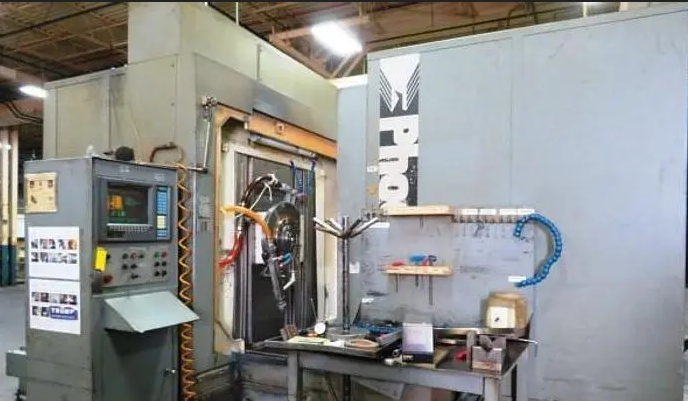

Gleason 500HC 240 RPM Spiral Bevel Gear Generator

X-axis travel -12" to +12" (305 mm)
Y-axis travel -12" to +12" (305 mm)
Z-axis travel -1" to +25" (711 mm)
A-axis work spindle speed 0 to 67 RPM
B-axis swinging base speed 0 to 30°/sec
C-axis cutter spindle speed 0 to 240 RPM
X-axis feedrate 0 to 80 mm/sec
Y-axis feedrate 0 to 80 mm/sec
Z-axis feedrate 0 to 80 mm/sec
Control GE Fanuc 150M
Control feature automatic setup
Control feature cycle fault monitoring
Control feature memory for 25 parts
Control feature operator pendant
Cutting process face milling
Cutting process face hobbing
Max gear pitch diameter (1:1 ratio) 21.63" (549.4 mm)
Max gear pitch diameter (2:1 ratio) 27.36" (694.94 mm)
Max gear pitch diameter (5:1 ratio) 30.00" (762.0 mm)
Max face width 4.60" (116.84 mm)
Max depth of cut 1.25" (31.75 mm)
Tooth count range 5 to 200
Cutter diameters 9", 10.5", 12", 14", 16", 18"
Work spindle taper diameter 8" (#80 taper)
Adapter sleeve to 6" (#60 taper)
Taper per foot ¾" (19.05 mm)
Taper depth 6" (152.4 mm)
Hole through spindle diameter 7.125" (180.98 mm)
A-axis servo torque 50 ft-lbs (66.0 Nm)
B-axis servo torque 4.4 ft-lbs (5.9 Nm)
C-axis drive power 25 HP (18.64 kW)
X-axis servo torque 8.7 ft-lbs (11.8 Nm)
Y-axis servo torque 8.7 ft-lbs (11.8 Nm)
Z-axis servo torque 8.7 ft-lbs (11.8 Nm)
Coolant pump power 5 HP (3.72 kW)
Hydraulic pump power 5 HP (3.72 kW)
Chiller unit power 3 HP (2.24 kW)
Chip conveyor power 0.5 HP (0.373 kW)
Coolant system with magnetic chip conveyor
Hydraulic workpiece chuck with draw rod
Work spindle ratio gears included
Manual stock divider
Smoke and mist collector
Chiller for coolant system
Work arbor clamp
Freestanding air-conditioned electrical enclosure
Clamp/eject system for RSR and TRI-AC cutters
Machine footprint 219" x 227" (557 cm x 576 cm)
Height 127" (322 cm)
Weight approx. 42,500 lbs (19,318 kg)
Full documentation and parts list
Hydraulic and electrical diagrams included
