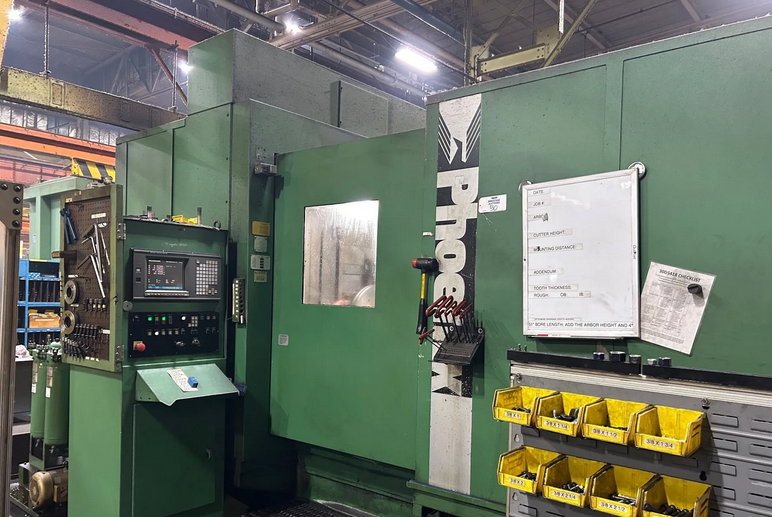

Gleason PHOENIX 1000HC Variable Speed Spiral Bevel Gear Generator

X-axis travel: ±305 mm (±12")
Y-axis travel: ±305 mm (±12")
Z-axis travel: -25/+700 mm (-1/+28")
B-axis root angle: -5°/+90°
C-axis cutter: 0–500°
B-axis swinging base: 0–30°/sec

Machine center to work spindle face: 229 mm (fixed)
Control: Fanuc 150MB
Hydraulic chucking work spindle
Large bore work spindle #80 taper
Stock divider
Helical motion
Modified roll

Coolant system with Hansen chiller and filtration
Coolant tank and pumps
Chip conveyor
Chip hopper
Reven mist collector
Hydraulic system
Transformer
Cutter bolt
Work light
Operator platform
Hand tools
Documentation

Maximum gear pitch diameter: 1000 mm (39.37")
Maximum face width face milling: 152 mm (6.00")
Maximum face width face hobbing: 76.20 mm (3.00")
Full depth face milling: 31.75 mm (1.25")
Full depth face hobbing: 23.50 mm (0.93")
Range of tooth numbers: 1–300
Extreme ratio face milling: 10:1
Extreme ratio face hobbing: 10:1
Cutter size maximum face milling: 18" diameter
Cutter size maximum face hobbing: 350 mm radius

Root angle range face hobbing: 5°–90°
Work spindle speed: 0–67 RPM / 0–333 RPM
Diameter of taper hole at large end: 8" (#80 taper) to 6" (#60 taper)
Taper per foot: 3/4"

Depth of taper front: 152.40 mm (6")
Depth of bore: 678 mm (26.7")
Diameter of taper bore: 140 mm (5.5")
Diameter through spindle hole: 180.98 mm (7.125")
Machine length x width: 5920 x 5310 mm (233" x 209")
Machine height: 3280 mm (129")
Machine weight: 29,484 kg (65,000 lbs)
